Select Correct PTO Speed

RXA0155248-UN-08NOV16

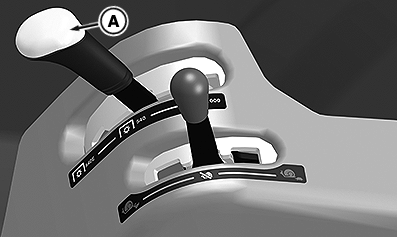

PTO Shift Lever

A - PTO Shift Lever

IMPORTANT: Disengage PTO and allow PTO to come to a complete stop before changing PTO speed with lever (A). NEVER use PTO shift lever (A) to engage or disengage PTO or damage occurs.

See the implement operator manual for correct PTO speed and shaft to use for best performance.

1. Adjust drawbar for PTO selection.

2. Attach implement.

3. Move PTO shift lever (A) rearward 1000 standard operation.

4. Move PTO shift lever to the center position for 540 standard operation.

5. Move PTO shift lever forward for 540E economy operation. Economy mode is designed for lighter PTO loads where power requirements do not require as high of engine rpm. It helps to conserve fuel and lowers noise levels.

PTO Speed	Recommended Engine Speed (rpm)	Recommended Applications
540	2100	Normal to heavy loads requiring full engine power.
1000	2100	Normal to heavy loads requiring full engine power.
540E	1645	Light loads not requiring full engine power.
