Operate Rear PTO

RXA0152706
RXA0152706-UN-26JUL16

RXA0153745
RXA0153745-UN-07SEP16

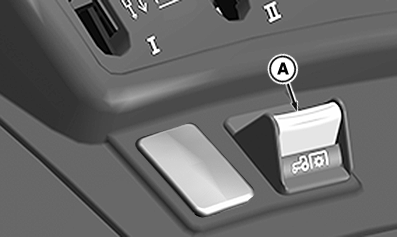

A - Rear PTO Switch

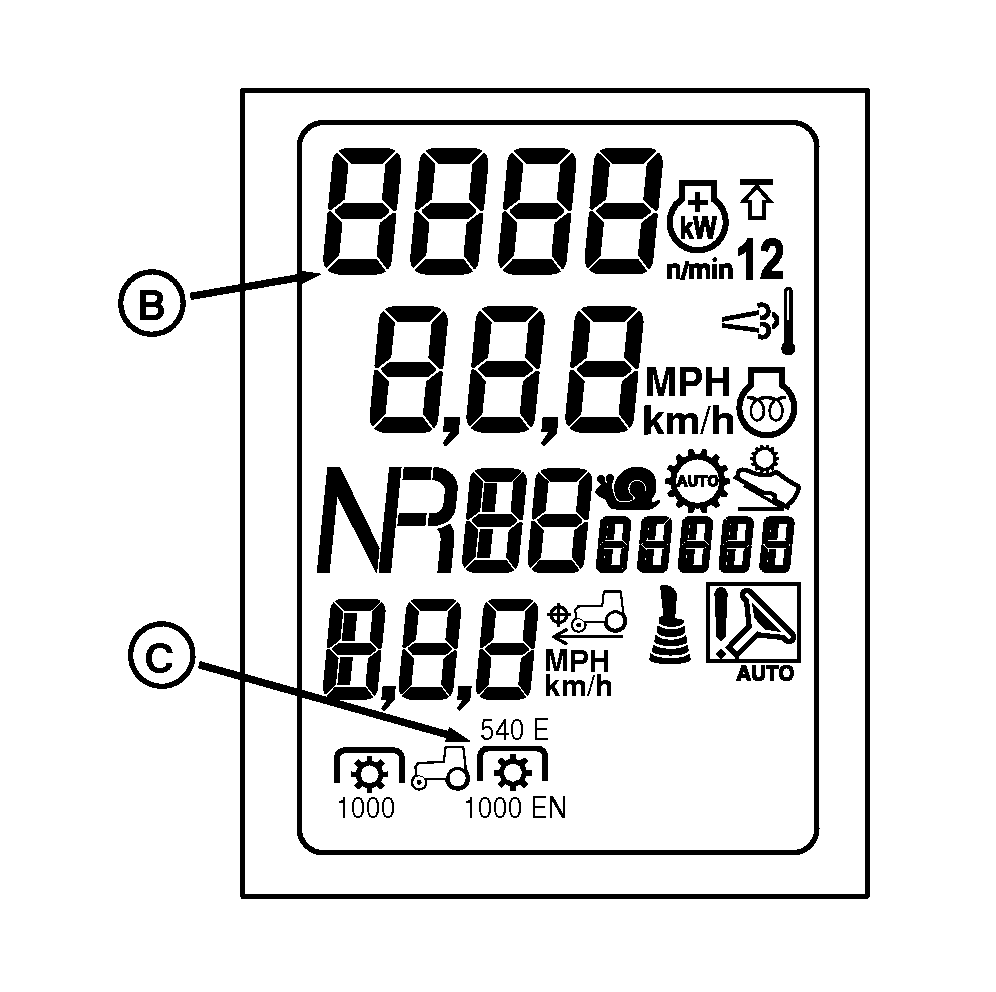

B - Tachometer

C - Rear PTO Indicator

CAUTION: If PTO engages at engine start-up, contact your John Deere dealer for service.

NOTE: Engine starts with PTO switch engaged, but PTO switch must be cycled off and on again before PTO engages.

  1. Start engine and set to correct rated speed for PTO application. Observe tachometer (B) for engine speed.

    Rear PTO

    Engine Speed (rpm)

    540/1000

    2100

    540E

    1645

  2. Push down and forward on rear PTO switch (A) to engage PTO. Rear PTO indicator (C) and PTO mode illuminate on the primary display.

  3. Pull rear PTO switch (A) rearward to disengage PTO.

BH38674,0000573-19-20161117
