Rear SCV Controls and Components

Rear SCV Controls

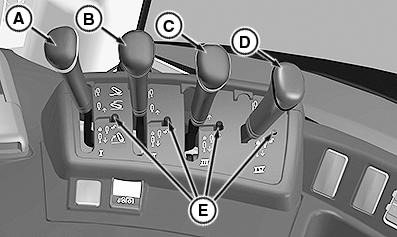

RXA0154080-UN-13OCT16

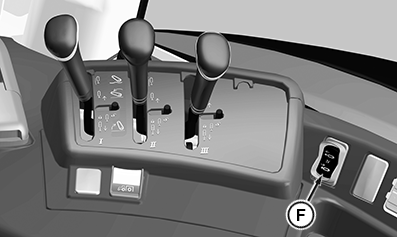

RXA0154081-UN-13OCT16

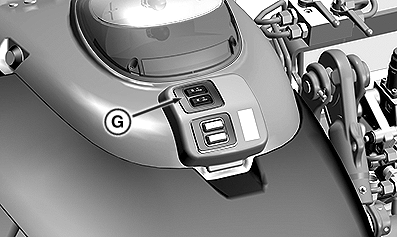

RXA0155832-UN-18NOV16

A - SCV I Lever

B - SCV II Lever

C - SCV III Lever

D - SCV IV Lever

E - Transport Locks

F - SCV IV Console Switch

G - SCV IV Fender Switches

Open Center Rear SCV Components

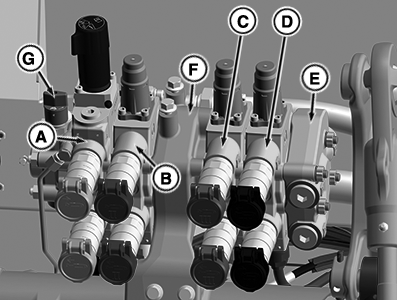

RXA0154084-UN-02DEC16

Open Center Rear SCV Stack

A - SCV I

B - SCV II

C - SCV III

D - SCV IV

E - End Plate

F - Rear SCV Manifold

G - Inlet Plate with Adjustable Flow Control

Closed Center Rear SCV Components

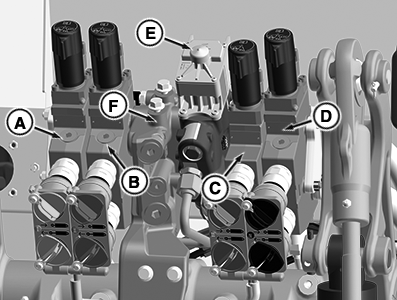

RXA0154085-UN-02DEC16

Closed Center Rear SCV Stack

A - SCV I

B - SCV II

C - SCV III

D - SCV IV

E - Hitch Valve

F - Rear SCV Manifold

Rear SCV Operation

SCV Levers

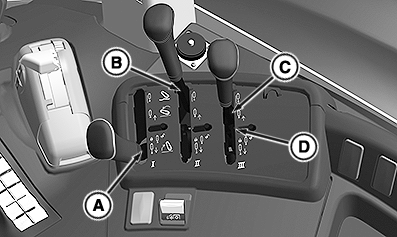

RXA0154098-UN-13OCT16

A - Extend Position

B - Float Position

C - Retract Position

D - Neutral Position

IMPORTANT: Use the transport lock to avoid unintentional rear SCV movement during transport or while operator is not using SCVs.

Rear SCV levers have four positions:

• Extend - pull and hold lever rearward as required.
• Retract - push and hold lever forward as required.
• Neutral - release lever unless in the float detent. If in float, lever must be pulled rearward to return to neutral.
• Float - push lever forward past retract position into the float detent.

SCV Switches

SCV IV console and fender switches only extend or retract the cylinder. Float function is not available. Releasing the switches allows the valve to go to neutral.

Rear SCV Identification

SCV levers and couplers are color coded for easier identification. The SCV control matches the corresponding cap on the SCV.

Rear SCV Numbers And Corresponding Colors
SCV Number	Color
SCV I	Green
SCV II	Blue
SCV III	Brown
SCV IV	Black
