Height Adjustable Trailer Hitch

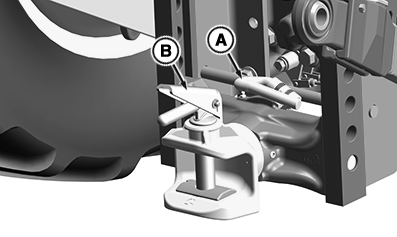

RXA0155244
RXA0155244-UN-27OCT16

Manual Type

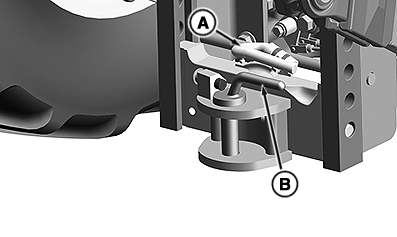

RXA0155245
RXA0155245-UN-27OCT16

CUNA Type

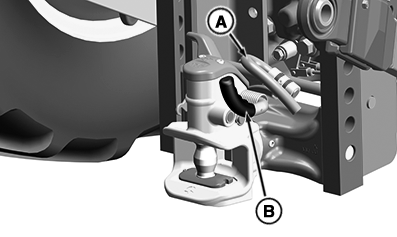

RXA0155246
RXA0155246-UN-27OCT16

Automatic Type

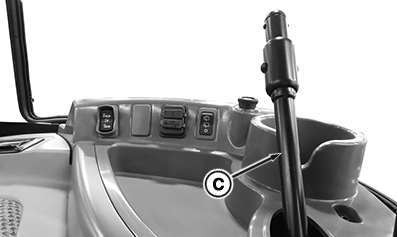

RXA0155247
RXA0155247-UN-27OCT16

Remote Hitch Lever

A - Quick Release Lever

B - Actuating Handle

C - Remote Hitch Lever

CAUTION: Use the Manual hitch system for trailers with non-pivoting towing eyes.

Use the CUNA hitch system for trailers with pivoting towing eyes.

IMPORTANT: Use only trailers with a towing eye that matches the hitch pin diameter.

Hitches can be adjusted up or down according to the implement height and obtain clearance for the center link or PTO operation.

The machine can be equipped with different hitch versions which are operated in different ways.

    Adjust Height and Operate Hitch:

  1. The height of all hitches can be adjusted using quick release lever (A). Support hitch with one hand move hitch with the other.
  2. Make sure that the side locking pins have fully engaged.
  3. Manual type hitches can be operated by handle (B).
  4. Automatic type hitch can be operated using lever (B) or can be operated from the operators seat using remote hitch lever (C).

Maximum permissible static vertical loads and towable loads are stated in “Specifications” section.

NOTE: Inspect hitch for wear as required. See "Maintenance Intervals" section.
