Adjusting Spreading Dimensions

LV16048-UN-10SEP12

LV16049-UN-10SEP12

LV16046-UN-10SEP12

LV16050-UN-10SEP12

A - Flap Cover

B - Ring

C - Lever

D - Pin

E - Spacer

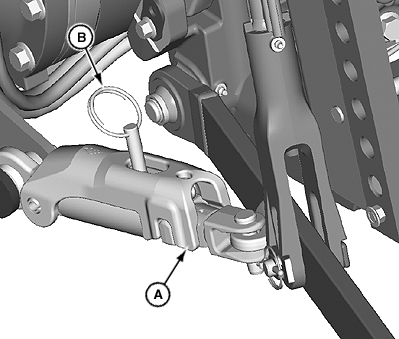

Drive machine to the center of the implement. Remove ring (B) and lift flap cover (A). To adjust the spreading dimension use lever (C).

Category	Groove
I + II	1
III	2
II + IIIN	3

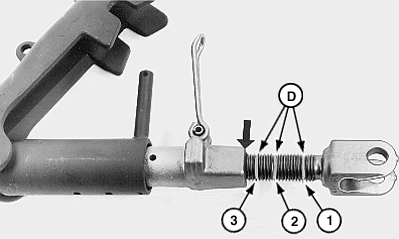

Grooves (D) provide a guide in adjusting the spreading dimension.

The groove (D) that corresponds to the relevant category should be aligned with the edge (see arrow).

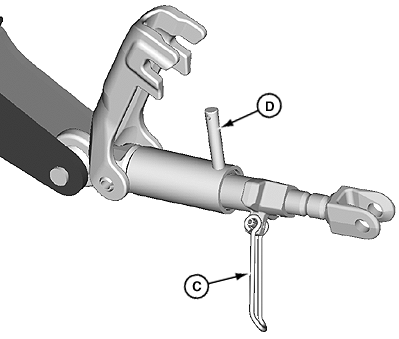

Locate lever (C) on pin (D), lower flap cover (A) and secure with ring (B).

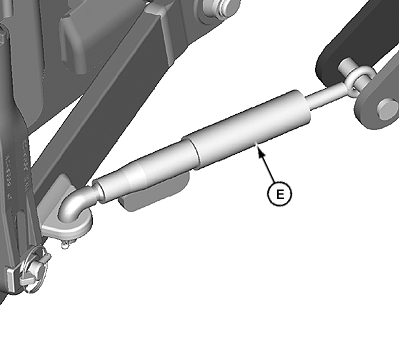

Adjust spacer (E) accordingly.
