Drawn Implement Connection

RXA0155570-UN-09NOV16

RXA0155572-UN-09NOV16

RXA0155868-UN-18NOV16

PULV000530-UN-11MAR08

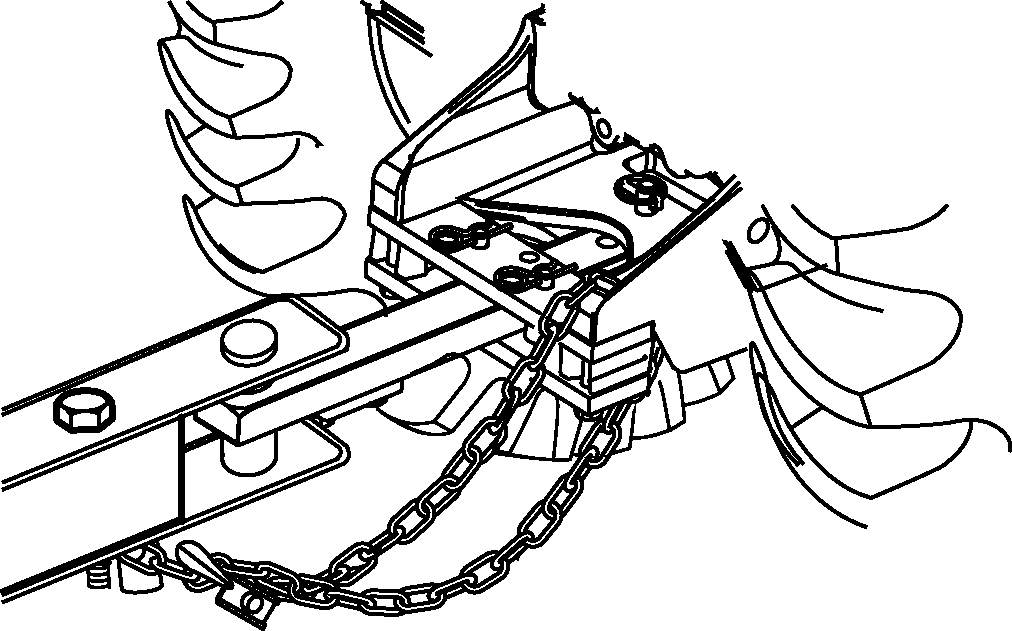

Safety Chain with Drawbar Retracted

PULV000531-UN-11MAR08

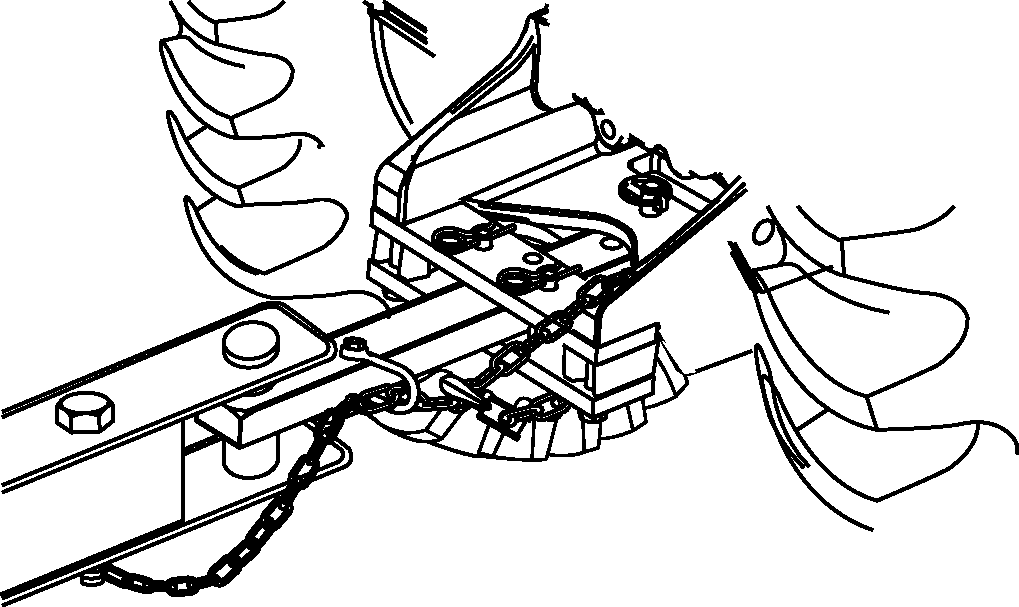

Safety Chain with Drawbar Extended

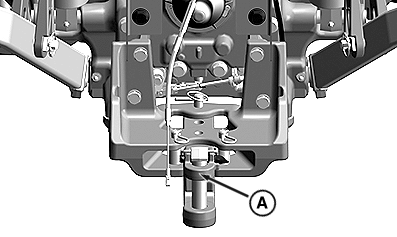

A - Drawbar

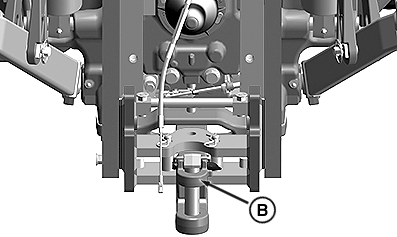

B - Wagon Hitch Drawbar

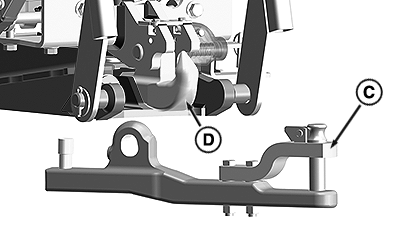

C - Pickup Hitch Drawbar

D - Hook End

IMPORTANT: Some heavy implements, such as a loaded single-axle trailer, can put excessive strain on drawbar. Speed and rough terrain increases drawbar strain. Reduce speed with heavy loads. Do not exceed maximum static vertical load on drawbar. See the “Specifications” section for maximum vertical drawbar load.

1. Back machine up to implement. Align drawbar (A), (B), or (C) with the implement connection point as close as possible.

2. Use a drawbar pin that is matched for the machine and implement holes with as little free play as possible.

   CAUTION: Using smaller diameter pins reduces implement control, increases potential for pin failure and causes excessive drawbar wear.

3. Install a retaining clip in the drawbar pin.

4. If machine is equipped with hook end perform the following:

   • Back up to implement. Align hook end (D) as close as possible to implement connecting point.
   • Raise hitch to connect with implement.



5. Install a safety chain from the implement to the machine.

   CAUTION: A safety chain helps control drawn equipment in case it accidentally separates from the drawbar.

   Using the appropriate adapter parts, attach the chain to the drawbar support. Provide only enough slack in the chain to permit turning.

   See your John Deere dealer for a chain with a strength rating equal to or greater than the gross weight of the towed machine.
