Operate Wagon Hitch

Automatic

RXA0155878-UN-18NOV16

Automatic Wagon Hitch Lever

RXA0112501-UN-14DEC10

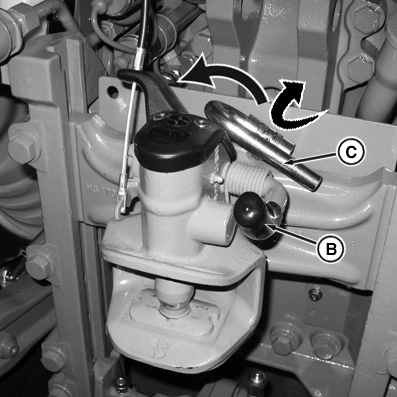

Automatic Wagon Hitch Height Adjustment

A - Lever

B - Release Lever

C - Height Adjustment Lever

CAUTION: Avoid personal injury. Keep hands and fingers from hitch latching mechanism.

Wagon hitch can be released from the operator's seat using lever (A).

The wagon hitch closes automatically when trailer towing eye enters the hitch or can be manually closed using release lever (B).

Wagon hitch height can be adjusted using height adjustment lever (C). To adjust, rotate height adjustment lever back, then slide lever to the left. Move hitch assembly up or down as desired. Make sure the pins lock into holes in hitch rail before connecting implement.

Manual

RXA0156169-UN-13DEC16

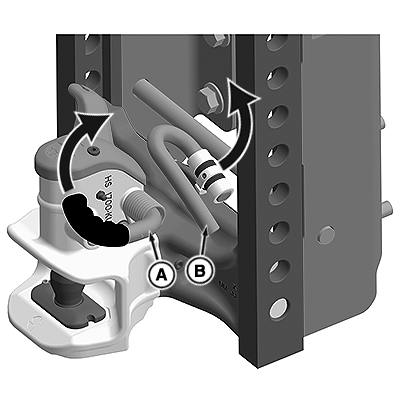

Manual Wagon Hitch

A - Release Lever

B - Height Adjustment Lever

The wagon hitch closes automatically when trailer towing eye enters the hitch or can be manually closed using release lever (A).

Wagon hitch height can be adjusted using height adjustment lever (B). To adjust, rotate height adjustment lever back, then slide lever to the left. Move hitch assembly up or down as desired. Make sure the pins lock into holes in hitch rail before connecting implement.
