Operate Pick-Up Hitch

RXA0155878-UN-18NOV16

RXA0155879-UN-14DEC16

RXA0155881-UN-18NOV16

RXA0155882-UN-18NOV16

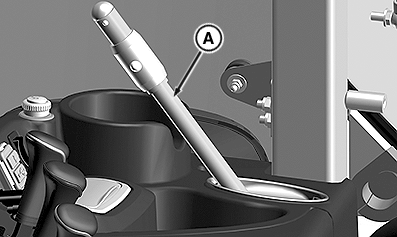

A - Pick-Up Hitch Control Lever

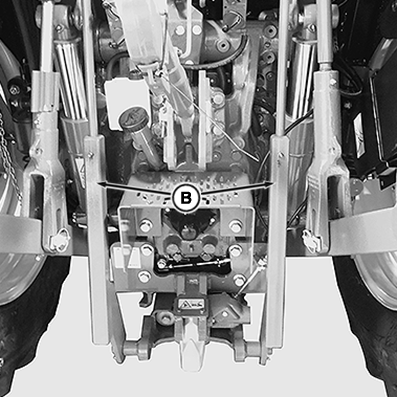

B - Lift Links

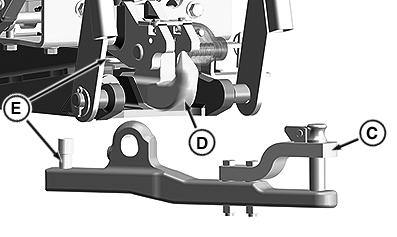

C - Draw Bar

D - Hook

E - Draw Bar Retaining Pin

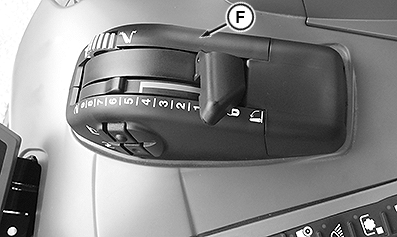

F - Rear Hitch Control Lever

CAUTION: Avoid bodily injury when pick-up hitch is used. Ensure pick-up hitch is fully raised and locked in position before driving away.

Avoid implement and/or pick-up hitch lift link damage:

• Use caution when making sharp turns.
• Adjust sway blocks or stabilizers to prevent interference or binding.

1. Lower rear hitch using the rear hitch control lever (F).

2. Retract pick-up hitch control lever (A).

3. Retract rear hitch control lever (F) to raise pick-up hitch.

4. NOTE: Hook end (D) can be replaced with a standard draw bar (C) if needed.

   Remove draw bar retaining pin (E) and remove hook end draw bar (D).

5. Install standard draw bar (C) and reinstall retaining pin (E).
