Select PTO Drawbar Position

RXA0153739
RXA0153739-UN-06SEP16

RXA0153744
RXA0153744-UN-07SEP16

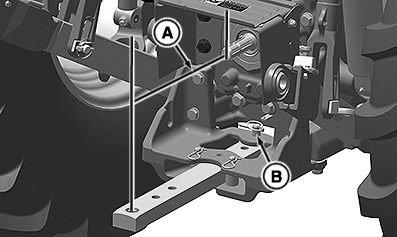

A - PTO Shaft End to Hitch Pin Hole

B - Drawbar Adjustment Pin

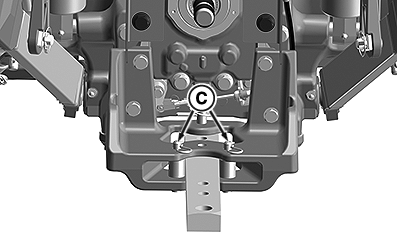

C - Drawbar Alignment Pins

CAUTION: Ensure that PTO is OFF, has come to a complete stop and allowed to cool before attaching or detaching implements.

Drawbar must be set to the proper position for pull type PTO driven implements. Put drawbar at shortest position for 3-point hitch-mounted PTO implements.

  1. Measure PTO shaft end to the hitch pin hole (A) and adjust for the application as required.

  2. Remove drawbar adjustment pin (B), set drawbar length, and replace pin.

  3. Set drawbar to center position (no off-set) and install alignment pins (C) to prevent drawbar movement.

PTO Shaft End To Hitch Pin Hole

6 spline

350 mm (13.78 in)

400 mm (15.75 in)

BH38674,000057E-19-20161118
