Select Front Tire Rolling Direction

RW510-UN-06APR89

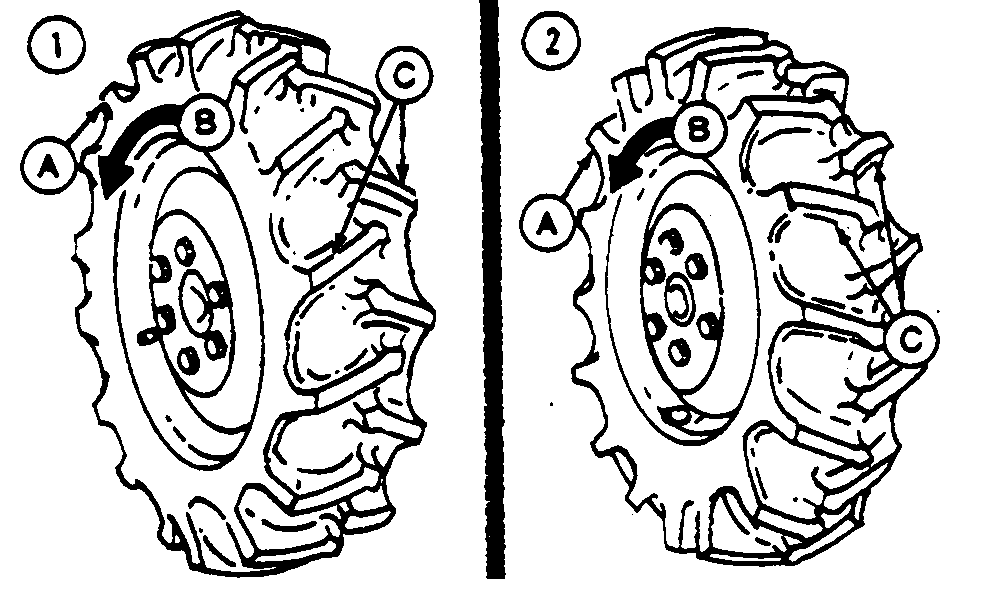

Left Tire (Viewed From Rear)

A - Front Tire (Viewed from Rear)

B - Rolling Direction of Tire

C - Tire Lugs

• (1) Under most conditions, front tires (A) are mounted with the direction of tire lugs (C) the same as the tire rolling direction (B).
• (2) If machine is used primarily for loader operations, lug direction can be reversed on the MFWD axle for improved tire wear.
