Rear Wheel Tread Width Limitations

M47179-UN-31JAN92

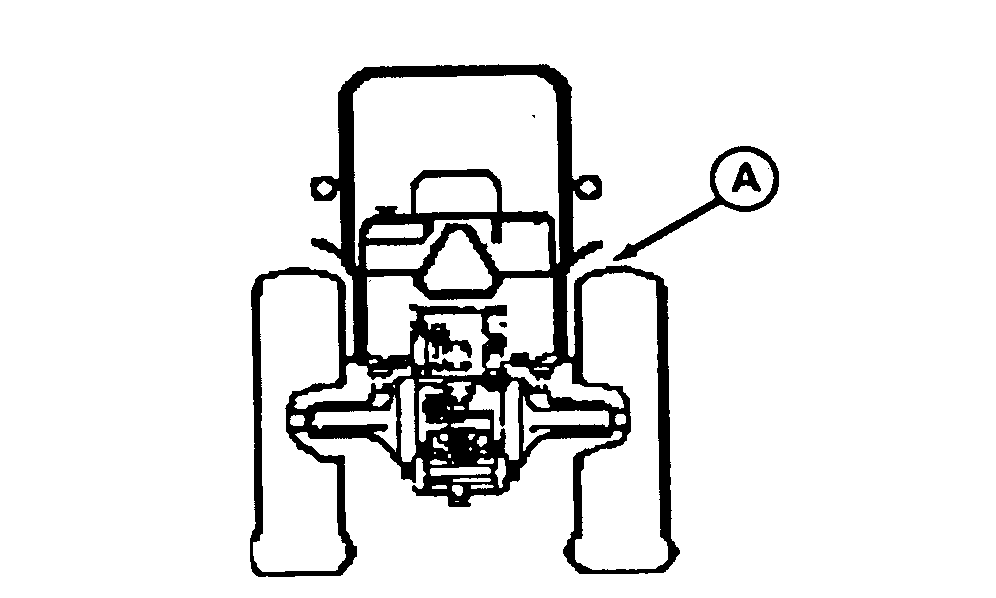

A - Rear Wheel-to-Fender Clearance

IMPORTANT: Tires must have at least 25 mm (1 in) clearance with fenders (A). When rear tires are installed, check clearance between the tire and fenders.
