Set Tread—Multi-Position Rear Wheels

LV8610-UN-28AUG03

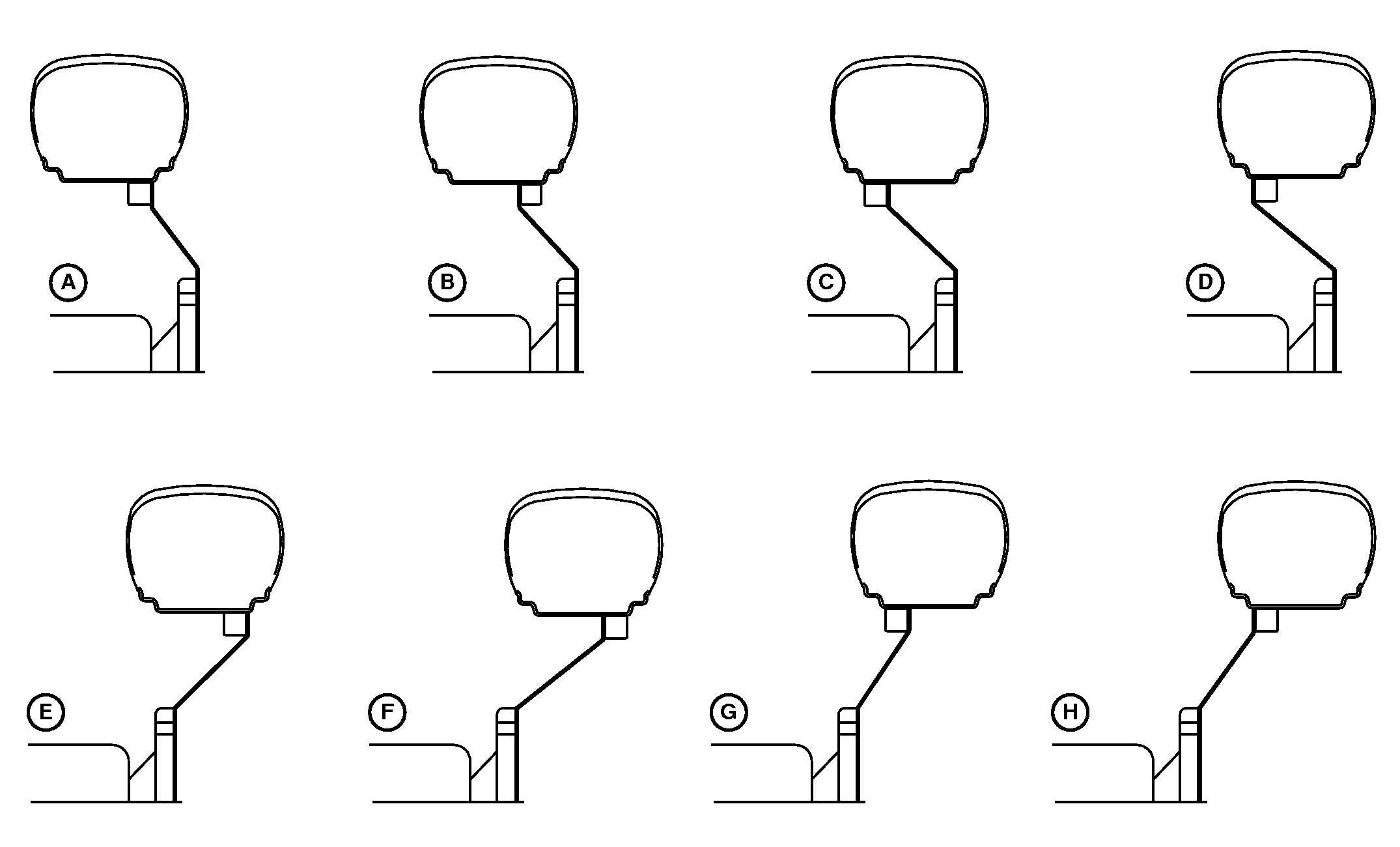

• Wheel tread with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.
• Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the machine. This permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel.
• When changing wheels from one side to the other, the arrow on the side wall of tire points in the direction of forward rotation.
• The wheel tread can be adjusted by exchanging the wheels from side to side and by using spacers.
• Tread settings are measured at the middle of the tires at axle height.

MULTI-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline)
No Spacer
Tire	A	B	C	D	E	F	G	H
19.5L-24	Interference	Interference	Interference	Interference	Interference	1587 mm (62.4 in)	1707 mm (67.2 in)	1803 mm (70.9 in)
15.5R38	Interference	Interference	Interference	Interference	1491 mm (58.7 in)	1595 mm (62.7 in)	1691 mm (66.5 in)	1795 mm (70.6 in)
18.4R34	Interference	Interference	Interference	Interference	1495 mm (58.8 in)	1595 mm (62.7 in)	1695 mm (66.7 in)	1795 mm (70.6 in)
16.9R34 (420/85R34)	Interference	Interference	Interference	Interference	1495 mm (58.8 in)	1595 mm (62.7 in)	1695 mm (66.7 in)	1795 mm (70.6 in)
480/70R34	Interference	Interference	Interference	Interference	1495 mm (58.8 in)	1595 mm (62.7 in)	1695 mm (66.7 in)	1795 mm (70.6 in)
540/65R34	Interference	Interference	Interference	Interference	Interference	1591 mm (62.6 in)	1699 mm (66.8 in)	1795 mm (70.6 in)
12.4R36 (320/85R39)	Interference	Interference	Interference	1395 mm (54.9 in)	1491 mm (58.7 in)	1595 mm (62.7 in)	1691 mm (66.5 in)	1795 mm (70.6 in)
16.9R30 (420/85R30)	Interference	Interference	Interference	Interference	1497 mm (58.9 in)	1591 mm (62.6 in)	1701 mm (66.9 in)	1795 mm (70.6 in)
18.4R30 (460/85R30)	Interference	Interference	Interference	Interference	1497 mm (58.9 in)	1591 mm (62.6 in)	1701 mm (66.9 in)	1795 mm (70.6 in)
230/95R48	Interference	Interference	1295 mm (50.9 in)	1395 mm (54.9 in)	1491 mm (58.7 in)	1591 mm (62.6 in)	1695 mm (67.7 in)	1795 mm 70.6 in)
340/85R38 (13.6R38)	Interference	Interference	Interference	1395 mm (54.9 in)	1491 mm (58.7 in)	1595 mm (62.7 in)	1691 mm (66.5 in)	1795 mm (70.6 in)
420/85R30 (16.9R30)	Interference	Interference	Interference	Interference	1497 mm (58.9 in)	1591 mm (62.6 in)	1701 mm (66.9 in)	1795 mm (70.6 in)
480/70R28	Interference	Interference	Interference	Interference	1501 mm (59.0 in)	1595 mm (62.7 in)	1701 mm (66.9 in)	1795 mm (70.6 in)
480/70R34	Interference	Interference	Interference	Interference	Interference	1595 mm (62.7 in)	1695 mm (67.7 in)	1795 mm (70.6 in)
540/65R34	Interference	Interference	Interference	Interference	Interference	1591 mm (62.6 in)	1699 mm (66.8 in)	1795 mm (70.6 in)
420/85R34 (16.9R34)	Interference	Interference	Interference	Interference	1495 mm (58.8 in)	1595 mm (62.6 in)	1695 mm (66.9 in)	1795 mm (70.6 in)
460/85R30 (18.4R30)	Interference	Interference	Interference	Interference	1497 mm (58.9 in)	1591 mm (62.6 in)	1701 mm (66.9 in)	1795 mm (70.6 in)
23.1-26 (TWO POSITION WHEEL)	Interference	1659 mm (65.3 in)	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
600/65R34	Interference	Interference	Interference	Interference	Interference	1591 mm (62.6 in)	1695 mm (66.9 in)	1795 mm (70.6 in)
540/65R38	Interference	Interference	Interference	Interference	Interference	1591 mm (62.6 in)	1695 mm (66.9 in)	1795 mm (70.6 in)
420/85R38	Interference	Interference	Interference	Interference	1491 mm (58.7 in)	1591 mm (62.6 in)	1695 mm (66.9 in)	1795 mm (70.6 in)
270/95R44	Interference	Interference	1339 mm (52.7 in)	1441 mm (56.7 in)	1495 mm (58.8 in)	1597 mm (62.8 in)	1739 mm (68.4 in)	1841 mm (72.4 in)

MULTI-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline)
30 mm Spacer
Tire	A	B	C	D	E	F	G	H
19.5L-24 10PR R4 TL GOODYEAR	Interference	Interference	Interference	Interference	1567 mm (61.7 in)	1663 mm (65.5 in)	1783 mm (70.2 in)	1879 mm (74 in)
15.5R38 125A8 R1W FIRESTONE	Interference	Interference	Interference	1479 mm (58.2 in)	1575 mm (62 in)	1679 mm (66.1 in)	1775 mm (69.9 in)	1879 mm (74 in)
19.5L-24 10PR R4TL GOODYEAR	Interference	Interference	Interference	Interference	1567 mm (61.7 in)	1663 mm (65.5 in)	1783 mm (70.2 in)	1879 mm (74 in)
18.4R34	Interference	Interference	Interference	Interference	1575 mm (62 in)	1675 mm (65.9 in)	1775 mm (69.9 in)	1875 mm (73.8 in)
16.9R34 (420/85R34) MICHELIN	Interference	Interference	Interference	1475 mm (58.1 in)	1575 mm (62 in)	1675 mm (65.9 in)	1775 mm (69.9 in)	1875 mm (73.8 in)
480/70R34 MICHELIN	Interference	Interference	Interference	Interference	1575 mm (62 in)	1675 mm (65.9 in)	1775 mm (69.9 in)	1875 mm (73.8 in)
540/65R34 MICHELIN	Interference	Interference	Interference	Interference	Interference	1671 mm (65.8 in)	1779 mm (70 in)	1875 mm (73.8 in)
12.4R36 (320/85R39) MICHELIN	Interference	Interference	1375 mm (54.1 in)	1475 mm (58.1 in)	1575 mm (62 in)	1679 mm (66.1 in)	1775 mm (69.9 in)	1879 mm (74 in)
16.9R30 (420/85R30) MICHELIN	Interference	Interference	Interference	1473 mm (58 in)	1575 mm (62 in)	1669 mm (65.7 in)	1779 mm (70 in)	1873 mm (73.7 in)
18.4R30 (460/85R30) GOODYEAR	Interference	Interference	Interference	Interference	1575 mm (62 in)	1669 mm (65.7 in)	1779 mm (70 in)	1873 mm (73.7 in)
230/95R48 136A8 R1W KLEBER	Interference	1275 mm (50.2 in)	1455 mm (57.3 in)	1455 mm (57.3 in)	1575 mm (62 in)	1455 mm (57.3 in)	1455 mm (57.3 in)	1879 mm (74 in)
340/85R38 (13.6R38) MITAS	Interference	1275 mm (50.2 in)	1379 mm (54.3 in)	1479 mm (58.2 in)	1575 mm (62 in)	1675 mm (65.9 in)	1779 mm (70 in)	1879 mm (74 in)
420/85R30 (16.9R30) MITAS	Interference	Interference	1375 mm (54.1 in)	1479 mm (58.2 in)	1575 mm (62 in)	1679 mm (66.1 in)	1775 mm (69.9 in)	1879 mm (74 in)
480/70R28 MITAS	Interference	Interference	Interference	1473 mm (58 in)	1575 mm (62 in)	1669 mm (65.7 in)	1779 mm (70 in)	1873 mm (73.7 in)
480/730R34 MITAS	Interference	Interference	Interference	Interference	1575 mm (62 in)	1671 mm (65.8 in)	1775 mm (69.9 in)	1871 mm (73.7 in)
540/65R34 MITAS	Interference	Interference	Interference	Interference	1575 mm (62 in)	1675 mm (65.9 in)	1775 mm (69.9 in)	1875 mm (73.8 in)
540/65R38 MICHELIN	Interference	Interference	Interference	Interference	Interference	1671 mm (65.8 in)	1775 mm (69.9 in)	1875 mm (73.8 in)
420/85R34 (16.934) MITAS	Interference	Interference	Interference	1475 mm (58.1 in)	1575 mm (62 in)	1675 mm (65.9 in)	1775 mm (69.9 in)	1875 mm (73.8 in)
460/85R30 (18.4R30) MITAS	Interference	Interference	Interference	Interference	1575 mm (62 in)	1669 mm (65.7 in)	1779 mm (70 in)	1873 mm (73.7 in)
23.1-26 GOODYEAR (TWO POSITION WHEEL)	Interference	1719 mm (67.7 in)	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
600/65R34 MICHELIN	Interference	Interference	Interference	Interference	Interference	1675 mm (65.9 in)	1779 mm (70 in)	1879 mm (74 in)
600/65R38 MITAS	Interference	Interference	Interference	Interference	Interference	1675 mm (65.9 in)	1779 mm (70 in)	1879 mm (74 in)
540/65R38 MICHELIN	Interference	Interference	Interference	Interference	Interference	1675 mm (65.9 in)	1779 mm (70 in)	1879 mm (74 in)
54/65R38 MITAS	Interference	Interference	Interference	Interference	Interference	1675 mm (65.9 in)	1779 mm (70 in)	1879 mm (74 in)
420/85R38 MICHELIN	Interference	Interference	Interference	1479 mm (58.2 in)	1575 mm (62 in)	1675 mm (65.9 in)	1779 mm (70 in)	1879 mm (74 in)
420/85R38 MICHELIN	Interference	Interference	Interference	1479 mm (58.2 in)	1575 mm (62 in)	1675 mm (65.9 in)	1779 mm (70 in)	1879 mm (74 in)
270/95R44 KLEBER	Interference	Interference	1399 mm (55.1)	1501 mm (59.1 in)	1555 mm (61.2 in)	1657 mm (65.2 in)	1779 mm (70 in)	1901 mm (74.8 in)

MULTI-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline)
44 mm Spacer
Tire	A	B	C	D	E	F	G	H
19.5L-24 10PR R4 TL GOODYEAR Offset	Interference	Interference	Interference	Interference	1595 mm (62.8 in)	1690 mm (66.5 in)	1812 mm (71.3 in)	1908 mm (75.1 in)
15.5R38 125A8 R1W FIRESTONE	Interference	Interference	Interference	1507 mm (59.3 in)	1603 mm (63.1 in)	1707 mm (67.2 in)	1803 mm (71 in)	1907 mm (75.1 in)
19.5L-24 10PR R4TL GOODYEAR	Interference	Interference	Interference	Interference	1595 mm (62.8 in)	1691 mm (66.6 in)	1811 mm (71.3 in)	1907 mm (75.1 in)
18.4R34	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1803 mm (71 in)	1903 mm (75.1 in)
16.9R34 (420/85R34) MICHELIN	Interference	Interference	Interference	1503 mm (59.2 in)	1603 mm (63.1 in)	1703 mm (67 in)	1803 mm (71 in)	1903 mm (75.1 in)
480/70R34 MICHELIN	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1803 mm (71 in)	1903 mm (75.1 in)
540/65R34 MICHELIN	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1699 mm (66.9 in)	1807 mm (71.1 in)	1903 mm (75.1 in)
12.4R36 (320/85R39) MICHELIN	Interference	Interference	1403 mm (55.2 in)	1507 mm (59.3 in)	1603 mm (63.1 in)	1697 mm (66.8 in)	1803 mm (71 in)	1907 mm (75.1 in)
16.9R30 (42085R30) MICHELIN	Interference	Interference	Interference	1501 mm (59.1 in)	1603 mm (63.1 in)	1697 mm (66.8 in)	1807 mm (71.1 in)	1901 mm (74.8 in)
18.4R30 (460/85R30) GOODYEAR	Interference	Interference	Interference	1501 mm (59.1 in)	1603 mm (63.1 in)	1697 mm (66.8 in)	1807 mm (71.1 in)	1901 mm (74.8 in)
230/95R48 136A8 R1W KLEBER	Interference	1303 mm (51.3 in)	1407 mm (55.4 in)	1507 mm (59.3 in)	1603 mm (63.1 in)	1703 mm (67 in)	1807 mm (71.1 in)	1907 mm (75.1 in)
340/85R38 (13.6R38) MITAS	Interference	Interference	1403 mm (55.2 in)	1507 mm (59.3 in)	1603 mm (63.1 in)	1707 mm (67.2 in)	1803 mm (71 in)	1907 mm (75.1 in)
420/85R30 (16.9R30) MITAS	Interference	Interference	Interference	1501 mm (59.1 in)	1603 mm (63.1 in)	1697 mm (66.8 in)	1807 mm (71.1 in)	1901 mm (74.8 in)
480/70R28 MITAS	Interference	Interference	Interference	1497 mm (58.9 in)	1603 mm (63.1 in)	1699 mm (66.9 in)	1803 mm (71 in)	1899 mm (74.8 in)
480/730R34 MITAS	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1803 mm (71 in)	1903 mm (75.1 in)
540/65R34 MITAS	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1699 mm (66.9 in)	1807 mm (71.1 in)	1903 mm (75.1 in)
540/65R38 MICHELIN	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1803 mm (71 in)	1903 mm (75.1 in)
420/85R34 (16.934) MITAS	Interference	Interference	Interference	1503 mm 59.2 in)	1603 mm (63.1 in)	1703 mm (67 in)	1803 mm (71 in)	1903 mm (75.1 in)
460/85R30 (18.4R30) MITAS	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1697 mm (66.8 in)	1807 mm (71.1 in)	1901 mm (74.8 in)
23.1-26 GOODYEAR TWO POSITION WHEEL	Interference	1747 mm (68.8 in)	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
600/65R34 MCHELIN	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1807 mm (71.1 in)	1907 mm (75.1 in)
600/65R38 MITAS	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1807 mm (71.1 in)	1907 mm (75.1 in)
540/65R38 MICHELIN	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1807 mm (71.1 in)	1907 mm (75.1 in)
540/65R38 MITAS	Interference	Interference	Interference	Interference	1603 mm (63.1 in)	1703 mm (67 in)	1807 mm (71.1 in)	1907 mm (75.1 in)
420/85R38 MICHELIN	Interference	Interference	Interference	1507 mm (59.3 in)	1603 mm (63.1 in)	1703 mm (67 in)	1807 mm (71.1 in)	1907 mm (75.1 in)
420/85R38 MICHELIN	Interference	Interference	Interference	1507 mm (59.3 in)	1603 mm (63.1 in)	1703 mm (67 in)	1807 mm (71.1 in)	1907 mm (75.1 in)
270/95R44 KLEBER	Interference	Interference	1427 mm (56.2 in)	1529 mm (60.2 in)	1583 mm (62.3 in)	1685 mm (66.3 in)	1827 mm (71.9 in)	1929 mm (76 in)

MULTI-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline)
111 mm Spacer
Tire	A	B	C	D	E	F	G	H
19.5L-24 10PR R4 TL GOODYEAR Offset	Interference	Interference	1546 mm (60.9 in)	1642 mm (64.7 in)	1728 mm (68 in)	1842 mm (71.8 in)	1946 mm (76.6 in)	2042 mm (80.4 in)
15.5R38 125A8 R1W FIRESTONE	Interference	1441 mm (56.7 in)	1537 mm (60.5 in)	1641 mm (64.6 in)	1737 mm (68.4 in)	1841 mm (72.5 in)	1937 mm (76.3 in)	2041 mm (85.4 in)
19.5L-24 10PR R4TL GOODYEAR	Interference	Interference	1545 mm (60.8 in)	1641 mm (64.6 in)	1729 mm (68.1 in)	1825 mm (71.9 in)	1945 mm (76.6 in)	2041 mm (85.4 in)
18.4R34	Interference	Interference	1537 mm (60.5 in)	1637 mm (64.5 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1937 mm (76.3 in)	2037 mm (80.2 in)
16.9R34 (420/85R34) MICHELIN	Interference	Interference	1537 mm (60.5 in)	1637 mm (64.5 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1937 mm (76.3 in)	2037 mm (80.2 in)
480/70R34 MICHELIN	Interference	Interference	1537 mm (60.5 in)	1637 mm (64.5 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1937 mm (76.3 in)	2037 mm (80.2 in)
540/65R34 MICHELIN	Interference	Interference	Interference	1637 mm (64.5 in)	1737 mm (68.4 in)	1833 mm (72.2 in)	1941 mm (76.4 in)	2037 mm (80.2 in)
12.4R36 (320/85R39) MICHELIN	Interference	1441 mm (56.7 in)	1537 mm (60.5 in)	1641 mm (64.6 in)	1737 mm (68.4 in)	1841 mm (72.5 in)	1937 mm (76.3 in)	2041 mm (85.4 in)
16.9R30 (420/85R30) MICHELIN	Interference	Interference	1541 mm (60.7 in)	1635 mm (64.4 in)	1737 mm (68.4 in)	1831 mm (72.1 in)	1941 mm (76.4 in)	2035 mm (80.1 in)
18.4R30 (460/85R30) GOODYEAR	Interference	Interference	1541 mm (60.7 in)	1635 mm (64.4 in)	1737 mm (68.4 in)	1831 mm (72.1 in)	1941 mm (76.4 in)	2035 mm (80.1 in)
230/95R48 136A8 R1W KLEBER	1337 mm (52.6 in)	1437 mm (56.6 in)	1541 mm (60.7 in)	1641 mm (64.6 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1941 mm (76.4 in)	2041 mm (85.4 in)
340/85R38 (13.6R38) MITAS	Interference	1441 mm (56.7 in)	1537 mm (60.5 in)	1641 mm (64.6 in)	1737 mm (68.4 in)	1841 mm (72.5 in)	1937 mm (76.3 in)	2041 mm (85.4 in)
420/85R30 (16.9R30) MITAS	Interference	Interference	1541 mm (60.7 in)	1635 mm (64.4 in)	1737 mm (68.4 in)	1831 mm (72.1 in)	1941 mm (76.4 in)	2035 mm (80.1 in)
480/70R28 MITAS	Interference	Interference	1537 mm (60.5 in)	1631 mm (64.2 in)	1737 mm (68.4 in)	1833 mm (72.2 in)	1937 mm (76.3 in)	2033 mm (80 in)
480/70R34 MITAS	Interference	Interference	1537 mm (60.5 in)	1637 mm (64.5 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1937 mm (76.3 in)	2037 mm (80.2 in)
540/65R34 MITAS	Interference	Interference	Interference	1637 mm (64.5 in)	1737 mm (68.4 in)	1833 mm (72.2 in)	1941 mm (76.4 in)	2037 mm (80.2 in)
420/85R34 (16.9R34) MITAS	Interference	Interference	1537 mm (60.5 in)	1637 mm (64.5 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1937 mm (76.3 in)	2037 mm (80.2 in)
460/85R30 (18.4R30) MITAS	Interference	Interference	1541 mm (60.7 in)	1635 mm (64.4 in)	1737 mm (68.4 in)	1831 mm (72.1 in)	1941 mm (76.4 in)	2035 mm (80.1 in)
23.1-26 GOODYEAR TWO POSITION WHEEL	Interference	1881 mm (74.1 in)	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
600/65R34 MCHELIN	Interference	Interference	Interference	1641 mm (64.6 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1941 mm (76.4 in)	2041 mm (85.4 in)
600/65R38 MITAS	Interference	Interference	Interference	1641 mm (64.6 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1941 mm (76.4 in)	2041 mm (85.4 in)
540/65R38 MICHELIN	Interference	Interference	Interference	1641 mm (64.6 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1941 mm (76.4 in)	2041 mm (85.4 in)
540/65R38 MITAS	Interference	Interference	Interference	1641 mm (64.6 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1941 mm (76.4 in)	2041 mm (85.4 in)
420/85R38 MICHELIN	Interference	Interference	1541 mm (60.7 in)	1641 mm (64.6 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1941 mm (76.4 in)	2041 mm (85.4 in)
420/85R38 MICHELIN	Interference	Interference	1541 mm (60.7 in)	1641 mm (64.6 in)	1737 mm (68.4 in)	1837 mm (72.3 in)	1941 mm (76.4 in)	2041 mm (85.4 in)
270/95R44 KLEBER	1317 mm (51.9 in)	1419 mm (55.9 in)	1561 mm (61.5 in)	1663 mm (65.5 in)	1717 mm (67.6 in)	1819 mm (71.6 in)	1961 mm (77.2 in)	2063 mm (81.2 in)
