Clean Grille Screens and Cooling Package

RXA0153092-UN-28JUL16

RXA0153101-UN-06DEC16

RXA0153100-UN-01AUG16

RXA0155654-UN-15NOV16

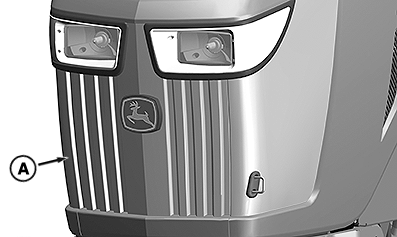

A - Grille

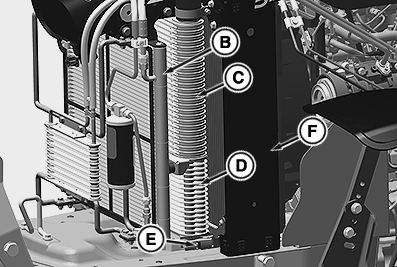

B - Air Conditioning Condenser

C - Charge Air Cooler

D - Hydraulic Oil Cooler

E - Clip

F - Radiator

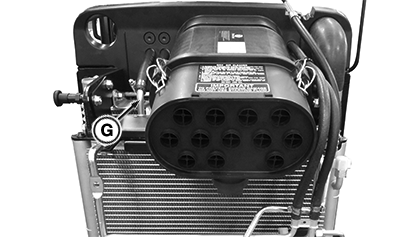

G - Hydraulic Oil Cooler Lines

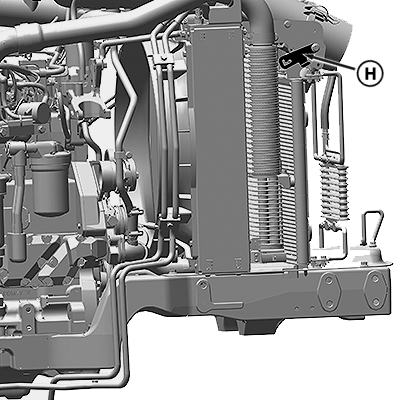

H - Release Latch

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

1. Remove trash buildup on the front grille (A) as required.

2. Raise hood.

3. Inspect air conditioner condenser (B), charge air cooler (C), oil cooler (D), and radiator (F) for debris. Clean using compressed air.

   If a more thorough cleaning is required, air conditioner condenser and hydraulic oil cooler tip out of position for easier access.

4. Air Conditioning Condenser: Pop clip (E) and pull air conditioner condenser up. Clean as needed.

5. Hydraulic Oil Cooler: While the condenser is flipped up, inspect charge air cooler (C) and hydraulic oil cooler (D).

6. Radiator: Pop clip (E) on the hydraulic oil cooler (D) and flip up to inspect radiator.

7. Inspect hydraulic oil cooler lines (G) for loose connections or any damages.

8. Straighten any bent fins.

9. Lift release latch (H).

10. Return air conditioner condenser, hydraulic oil cooler, and charge air cooler back into position. Secure with clips (E).

    NOTE: Verify that all lines are not pinched or kinked when coolers are repositioned.
