Keep Cab Protection System Installed Properly

CAUTION: The manufacturer must approve any cab alteration. The cab protection system is impaired if it is subjected to structural damage, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system must be replaced.

When installation of equipment on a machine necessitates loosening or removing cab protection system, replace and tighten mounting cap screws to specification.

All Cabs

LV14682-UN-24AUG11

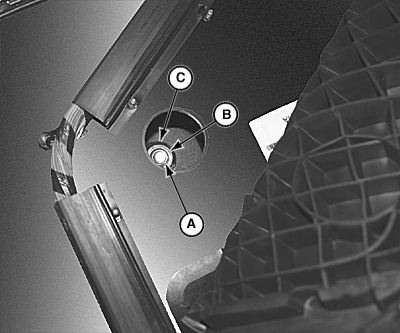

Front Cab Mount

A - Cap Screw (2 used)

B - Washer (2 used)

C - Isolator (2 used)

1. To access front mounting hardware, lift up rubber floor mat and pry out plugs.

2. Check front mounting hardware (A, B, and C) for proper torque.

   Item	Measurement	Specification
   Front Cab Mount Cap Screws	Torque	400 N·m (295 lb·ft)

Standard Cab

LV14683-UN-24AUG11

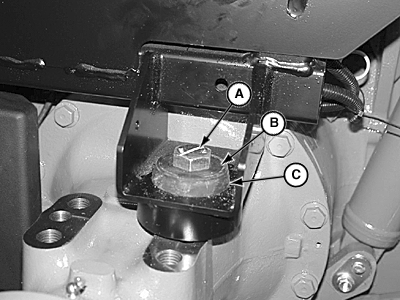

Rear Cab Mount

A - Cap Screw (2 used)

B - Washer (2 used)

C - Isolator (2 used)

1. Check rear mounting hardware (A, B, and C) for proper torque.

   Item	Measurement	Specification
   Rear Cab Mount Cap Screws	Torque	400 N·m (295 lb·ft)

Suspended Cab

RXA0155966-UN-07DEC16

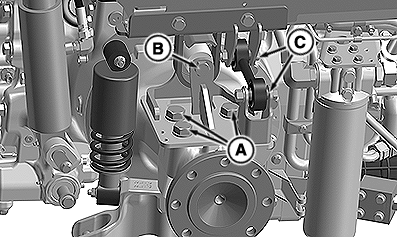

Rear Suspended Cab Mounts

A - Cap Screw (6 used)

B - Cap Screw (2 used)

C - Cap Screw (4 used)

1. Tighten mount to axle hardware (A) to specification.

   Item	Measurement	Specification
   Mount-To-Axle Cap Screw (A)	Torque	600 N·m (442 lb·ft)

2. Tighten vertical stop hardware (B)to specification.

   Item	Measurement	Specification
   Vertical Stop Cap Screw (B)	Torque	90 N·m (66 lb·ft)

3. Tighten lateral guidance arm hardware (C) to specification.

   Item	Measurement	Specification
   Lateral Guidance Arm Cap Screw (C)	Torque	215 N·m (158 lb·ft)
