Bleed Fuel System

LV22349-UN-10JUL14

Primary Fuel Filter

LV22350-UN-10JUL14

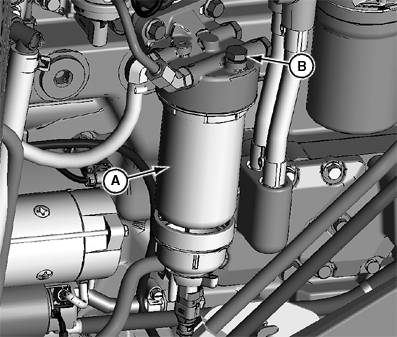

A - Primary Fuel Filter

B - Filter Housing Bleed Screw

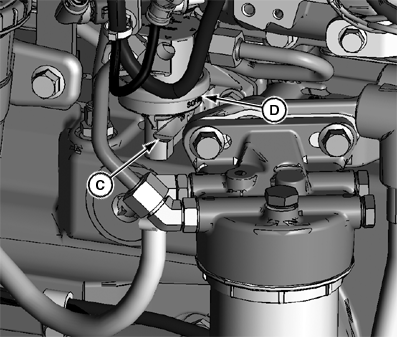

C - Priming Mechanism

D - Transfer Pump

CAUTION: Escaping fluid under pressure has the potential to penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene is possible. Doctors unfamiliar with this type of injury must reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

IMPORTANT: To avoid injection pump damage, DO NOT attempt to start the engine while bleeding the fuel system.

1. Park machine on level ground. Remove key.

2. Check fuel level. Add if necessary.

3. Raise hood and locate primary fuel filter (A) on the right-hand side of machine.

4. Loosen filter housing bleed screw (B). Capture the discharge waste and dispose of properly.

5. Push priming mechanism (C) at the transfer pump (D) until all air is purged and fuel runs out smoothly from bleed screw. Tighten bleed screw.

6. Lower hood.
