Lubricate Draft Sensing Shaft Seal

LV14423-UN-13JUN11

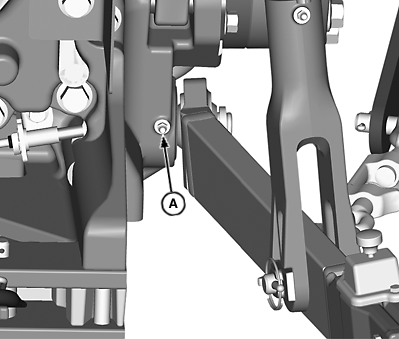

Right Side of Hitch

A - Grease Point

SERVICE INTERVAL
	Every 250 Hour

NOTE: Grease point on the right side of the PTO housing shown, left side similar.

Grease daily if operated in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease point (A). See “Fuel, Lubricants, and Coolant” for correct lubricant.
