Replace Fusible Link

RXA0154412
RXA0154412-UN-01NOV16

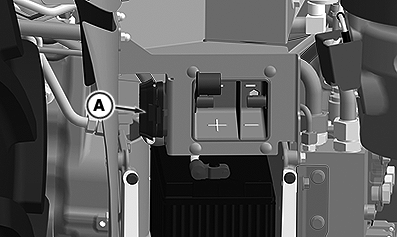

A - Fusible Link

  1. To replace the fusible link, access the battery compartment. See “Access and Replace Battery” in this section.

  2. Disconnect the battery.

  3. Locate the fusible link (A) next to the battery.

  4. Open the cover.

  5. Replace the fusible link with the correct part from your John Deere dealer.

  6. Close cover, reconnect the battery and replace the steps.

DP51502,000255E-19-20160802
