Replace Halogen Headlight Bulb

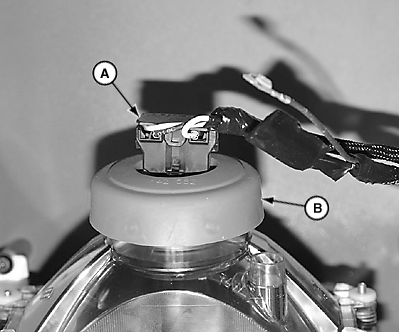

LV14699-UN-25AUG11

LV9511-UN-01AUG04

LV9512-UN-01AUG04

A - Wiring Harness Plug

B - Dust Boot

C - Retaining Spring

D - Light Bulb

CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. See “Handle Halogen Light Bulbs Safely” in this section.

1. Raise hood.

2. Disconnect wiring harness plug (A).

3. Remove dust boot (B).

4. Unlatch retaining spring (C) and remove light bulb (D).

5. Install new bulb in reverse order of removal.

6. Adjust headlights, if necessary.

Adjust Headlight

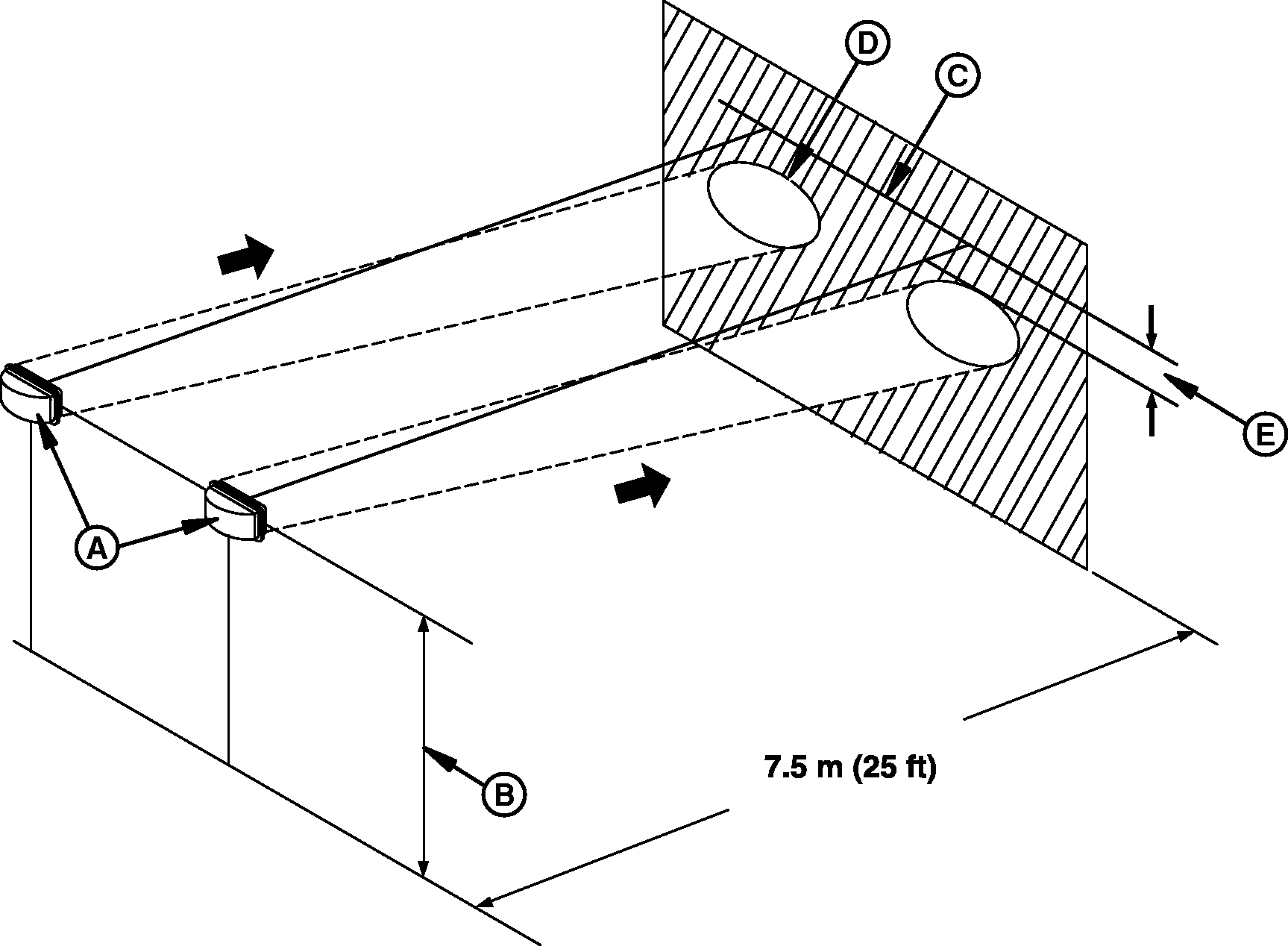

PULV000659-UN-05MAY08

Headlight Aiming Diagram

A - Headlights

B - Distance from Center of Headlight to Ground

C - Horizontal Line on Wall

D - Border of Bright Area

E - 10% of Distance (B)

1. Park machine on a level surface with headlights (A) 7.5 meters (25 ft) from a vertical wall.

2. Measure the distance (B) from the center of a headlight to the ground.

3. Mark a horizontal line (C) on the wall, the same distance from the ground as (B).

4. Turn headlight switch to low beam and observe bright areas on the wall.

5. Use screws at the back of lights for adjustment.
