Replace Right-Hand Console Light Bulb

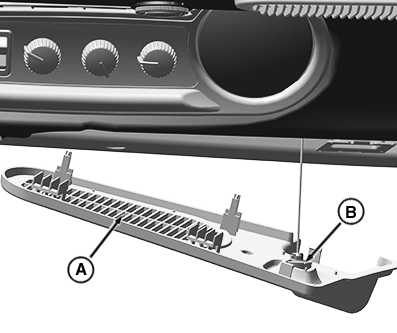

RXA0153099-UN-29JUL16

A - Panel

B - Light Bulb Retainer

1. Pry off panel (A).

2. Rotate light bulb retainer (B) counterclockwise to remove.

3. Pull out light bulb.

4. Install new bulb in reverse order of removal.
