Drain Water and Sediment from Fuel Filter

IMPORTANT: Place a suitable sized container under the fuel drain locations (filters, water separator, and tanks). Dispose of waste properly.

RXA0153093-UN-28JUL16

Primary Fuel Filter

RXA0153094-UN-28JUL16

Drain Plug

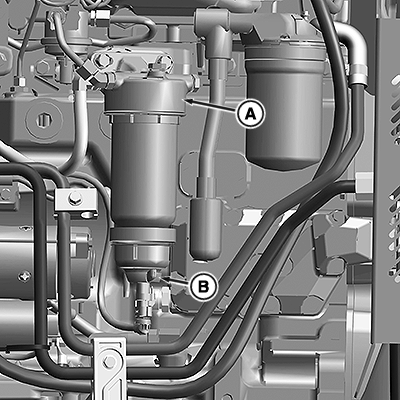

A - Primary Fuel Filter

B - Water Separator Drain Valve

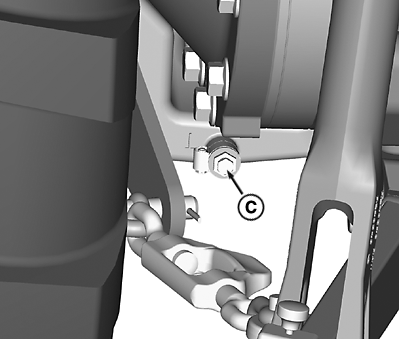

C - Fuel Tank Drain Plug

1. Park machine on level ground and shutoff engine. Remove key.

2. Raise hood and locate primary fuel filter (A) on the right-hand side of machine.

3. Open water separator drain valve (B) to bleed accumulated water and sediment from filter. Close when clear fuel runs from the drain valve.

4. Run engine for minimum of 20 seconds and check water separator drain valve again for water and sediment.

5. If moisture or sediment is present, drain fuel tank.

6. Open fuel tank drain plug (C) to bleed accumulated moisture and sediment from the fuel tank.

7. Apply Teflon® tape or equivalent to threads of the drain plug.

8. Tighten plug when clear fuel runs from the fuel tank drain. Replace and tighten.

9. Lower hood.
