Clean Air Filter Dust Unloading Valve

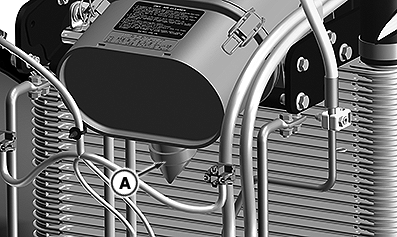

RXA0153048-UN-25JUL16

A - Dust Unloading Valve

SERVICE INTERVAL
	Daily or 10 Hour

IMPORTANT: Operating the engine without air cleaner elements and rubber dust unloading valve installed can damage the engine.

1. Park machine on lever ground.

2. Raise hood.

3. Clean out dust unloading valve (A) by squeezing the end to open and remove any excessive buildup of dust and dirt. Replace if damaged.

4. Lower hood.
