Lubricate MFWD Axle Trunnion

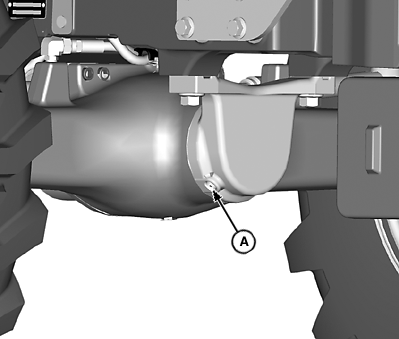

LV14409-UN-08JUN11

Front Side of Axle

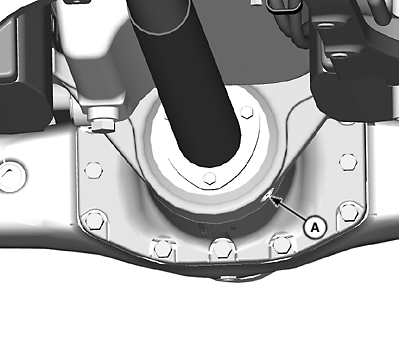

LV14410-UN-08JUN11

Back Side of Axle

A - Trunnion Grease Points

SERVICE INTERVAL
	Weekly or 50 Hour

Apply several shots of multi-purpose grease to trunnion. See “Fuel, Lubricants, and Coolant” section.
