Run Engine

RXA0152460
RXA0152460-UN-21JUN16

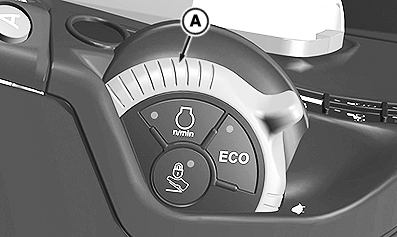

Hand Throttle

RXA0152807
RXA0152807-UN-14JUL16

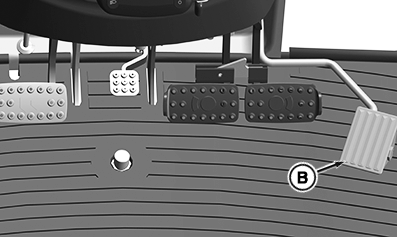

Foot Throttle

A - Hand Throttle

B - Foot Throttle

  1. Start engine.

  2. Set hand throttle (A) to 1200 rpm.

  3. Allow engine to run at 1200 rpm without load for 1-2 minutes if temperature is above 0°C (32°F). If temperature is below 0°C (32°F) run without load for 2-4 minutes. If temperature is extremely cold, it takes longer to get engine warm enough to operate.

  4. Once engine is warm, push hand throttle (A) forward to increase speed.

  5. Depress foot throttle (B) to increase engine speed temporarily above the hand throttle setting.

DP51502,000257B-19-20160823
