Check Transmission Park System

RXA0130966
RXA0130966-UN-14FEB13

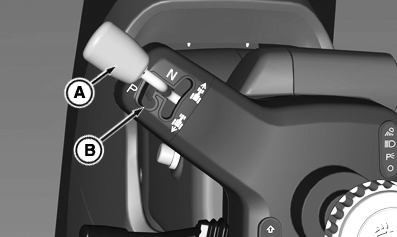

A - Left-Hand Reverser Lever

B - Park Position

CAUTION: Avoid personal injury. Make sure that everyone is clear of machine.

  1. Position machine on a 30% incline [1 m (3.3 ft) vertically for every 3 m (9.8 ft) horizontally] with the front of machine facing downward.
  2. Move left-hand reverser lever (A) to Park position (B).
  3. Leave machine in Park for 10-15 seconds, watching for any movement.

    CAUTION: If machine does not hold stationary on an incline with reverser lever in Park position, see your John Deere dealer immediately for repairs.

DP51502,00025F5-19-20161006
