Replace LED Work Light

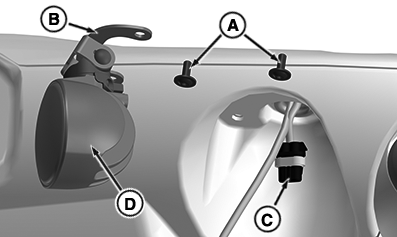

RXA0154416-UN-07NOV16

A - Screws

B - Bracket

C - Harness Connector

D - LED Light Bulb

NOTE: Bulb replacement procedures for front, side, rear, and auxiliary work lights are the same.

1. Tilt light outward and remove two screws (A) from the light bracket (B).

2. Disconnect harness connector (C) from light bulb (D).

3. Replace LED light bulb.

4. Reinstall in reverse order.
