Foot Throttle Pedal Lock

RXA0155563-UN-15NOV16

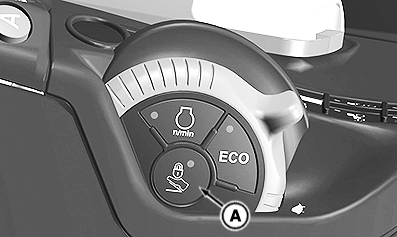

Hand Throttle

RXA0155564-UN-15NOV16

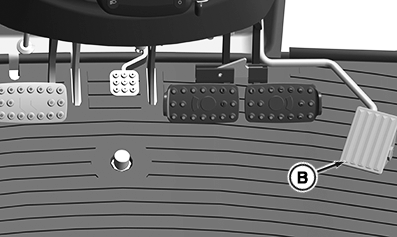

Foot Throttle

A - Foot Throttle Lock Button

B - Foot Throttle

NOTE: Foot pedal must be depressed a minimum of 1/4 of travel for pedal lock to function. If foot pedal lock does not engage, ensure that foot pedal is depressed enough and retry.

The foot throttle pedal lock feature allows the operator to set a desired pedal position when driving in the field. This option helps to reduce operator fatigue when extended periods of foot pedal usage are required. To engage foot pedal lock:

1. Drive machine using the foot throttle (B) at desired speed. Foot throttle command must be at least 10% higher than hand throttle command.

2. Depress and release the foot throttle lock button (A). Holding button for more than 1 second aborts function.

3. Completely release the foot throttle immediately after pressing the foot throttle lock button. Pedal does not remain in place and returns to top position. Holding the foot throttle in any engaged position for more than 1 second aborts the function.

4. Foot pedal mode indicator appears on the primary display, indicating that it is active.

5. Machine operates at throttle lock position until one of the following occurs:

   1. Depress the foot throttle lock button.

   2. Depress brake pedal or pedals.

   3. Hand or foot throttle command is 90% or higher of set foot throttle lock position.

   4. Machine is placed in park.
