Set Pivoting Fender Brackets

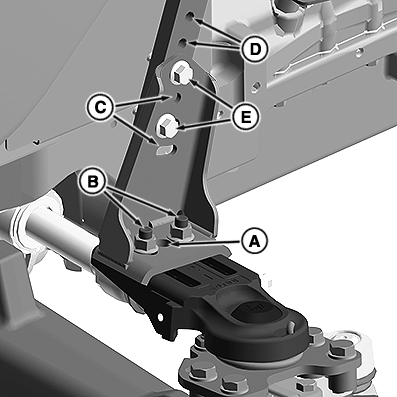

RXA0154421-UN-11NOV16

A - Position Indicator

B - Position Bolts

C - Height and Angle Adjustment Slots

D - Fender Arm Height Adjustment Holes

E - Height Bolts

NOTE: It is best to set fenders with the tires on the machine, resting on the ground and inflated to intended application pressure.

1. Loosen position bolts (B) to allow fender arm to be moved in or out as needed.

2. Select a position (1—5) that allows tire clearance and centers the fender arm over the center of the tire as close as possible. Number is visible in the position indicator (A) hole in the bracket.

3. Tighten position bolts.

4. Loosen and remove height bolts (E) to change fender height.

5. Set fender height to allow clearance for tire movement and material buildup on the tire.

   NOTE: Height bolts must be located correctly in the height and angle adjustment slots (C). Use the top and third slot (as shown) or the second and fourth.

6. Insert height bolts through the bracket and fender arm height adjustment holes (D) as required to obtain proper height for tire clearance.

7. Fender tilts forward or reward to get desired clearance. Tighten bolts once position is set.

8. Additional adjustment of the fender is possible to get proper alignment. See “Set Fender Position” in this section.
