Set Fender Position

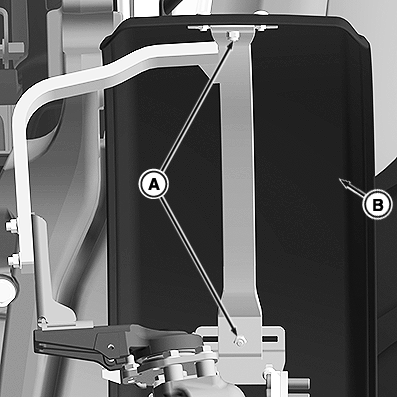

RXA0154422-UN-11NOV16

A - Fender Bolts

B - Fender

1. To adjust fender position, loosen bolts (A).

2. Slide fender (B) inward or outward as required to center the fender over the tire.

3. Tighten bolts once position is set.

4. Verify fender clearance by turning steering wheel to left stop and right stop. If the fender contacts machine or tire, readjust brackets and fender to resolve the problem.
