Corner Post Display

RXA0152806-UN-29JUL16

A - Primary Display

B - Information Display

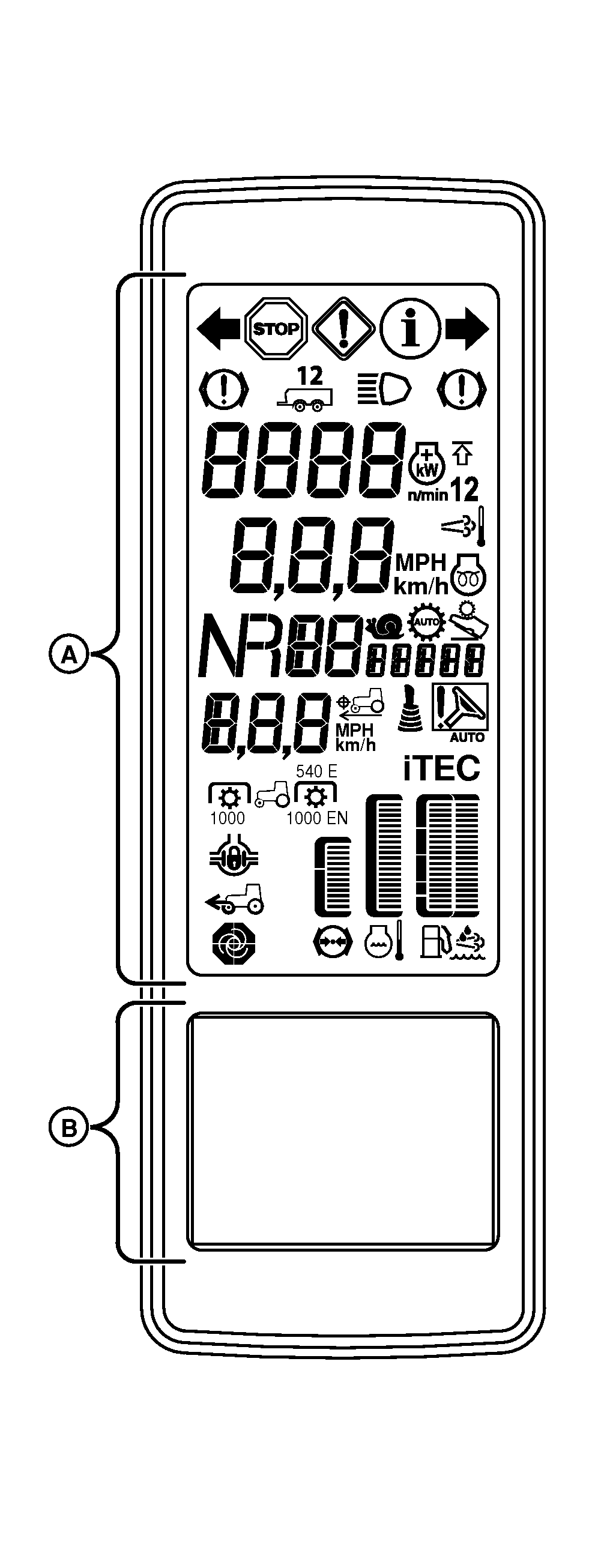

The corner post display is divided into two different functional areas.

The primary display (A) contains light indicators, numeric and alpha characters that are used to inform the operator about machine status.

The information display (B) is a screen which allows the operator to navigate through run pages, machine settings, display settings, and diagnostics. The run pages display more detailed information than the indicator lights alone. Accessing the setting menus allows the operator to customize the machine settings and functions. Diagnostics allow the operator to recognize issues with machine performance and avoid potential machine damage.

The primary and information displays work in conjunction to alert the operator of certain conditions such as alarms or monitoring system performance.
