Use Booster Battery or Charger

TS204-UN-15APR13

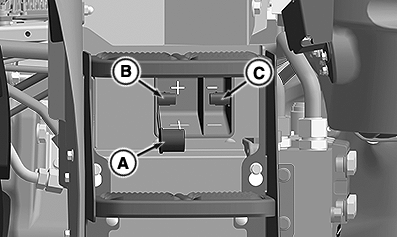

RXA0154359-UN-01NOV16

Under Right-Hand Step

A - Cover

B - Positive Terminal

C - Negative Terminal

CAUTION: Battery gas is explosive. Keep sparks and flames away from battery. Make last connection and first disconnection at a point away from battery.

Booster Battery

1. Remove protective cover (A) from the positive terminal.

2. Attach positive jumper cable to the machine battery positive post (B).

3. Attach positive jumper cable to the booster battery positive post.

4. Attach negative jumper cable to the machine battery negative post (C).

5. Attach negative jumper cable to the booster battery negative post.

6. Turn key to Start.

7. When engine starts, remove negative jumper cables first, then the positive cables.

8. Replace the protective cover on the positive terminal.

Battery Charger

1. Remove protective cover (A) from the positive terminal.

2. Turn charger OFF.

3. Attach positive charger lead to the battery positive terminal (B).

4. Attach negative charger lead to the battery negative terminal (C).

5. Charge battery according to charger manufacturer instructions.

6. Turn charger OFF.

7. Disconnect negative charger lead first, then positive lead.

8. Replace the protective cover on the positive terminal.
