Layout Manager Settings

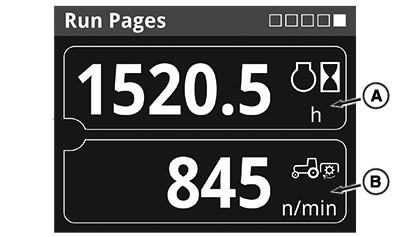

RXA0153401-UN-16AUG16

A - Run Page Configurable Item 1

B - Run Page Configurable Item 2

Layout Manager

The layout manger menu allows the operator to customize some of the run pages for quick access to specific information. Each run page is configured with two different values (A and B) using the layout manager.

The first and last run pages in the main menu are fixed and not configurable. When configuring run pages through the layout manger, the actual run page number corresponds to the layout manager page number.

Run page configuration choices are: engine hours, PTO speed, hydraulic oil temperature, coolant temperature, engine oil pressure, and many more. Not all choices are available on all machines, depending on installed options.
