Adjust Hitch Side Sway

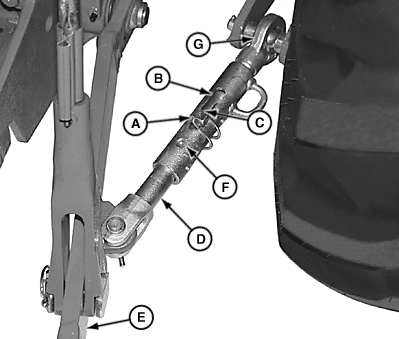

LV14575-UN-05AUG11

Sway Bar Pin in Sway Position

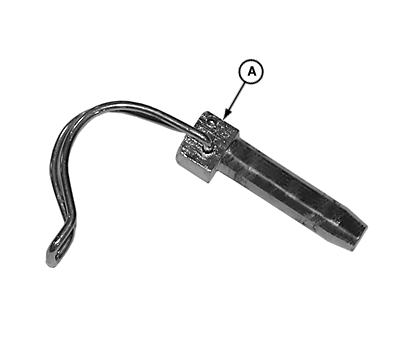

LV14576-UN-05AUG11

A - Pin

B - Sway Position Outer Slot

C - Sway Position Inner Slot

D - Inner Sliding Member

E - Draft Link

F - Fixed Position Holes

G - Stabilizer

NOTE: Check implement operator’s manual for instruction on whether to allow side sway.

If sway is desired, install pin (A) in the sway position outer slot (B), ensuring it goes through the inner slot (C).

If sway is not desired, move draft link (E) to desired position. Install pin (A) in a fixed position hole (F) that lines up with one of the holes (not slot) of the inner sliding member (D).

Adjust opposite side sway bar to same position.

NOTE: Additional fixed positions are obtained by adjusting threaded end of stabilizer (G). Remove pin (A), rotate the stabilizer to desired position. Insert pin in a fixed position hole. Missing thread on stabilizer also acts as a stop indicator.
