Load Depth Control

RXA0152937-UN-21JUL16

Load Depth Selection

Access the load depth selection through the hitch menu or by pressing the load depth button on the navigation pad.

RXA0107203-UN-07APR10

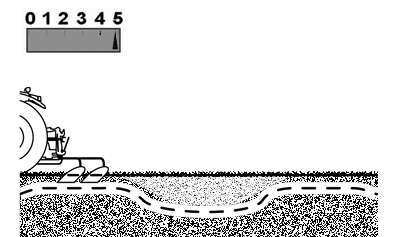

High Response Causes More Depth Variation If Soil Varies

RXA0107204-UN-07APR10

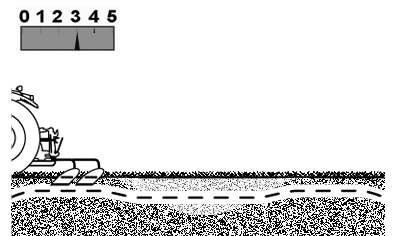

Lower Response Controls Depth Better If Soil Varies

RXA0107205-UN-07APR10

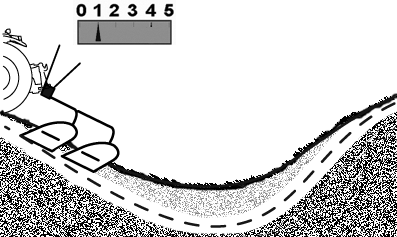

Lower Response Causes More Depth Variation In Rolling Terrain

RXA0107206-UN-07APR10

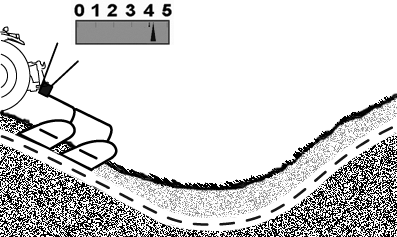

Higher Response Controls Depth Better In Rolling Terrain

RXA0153757-UN-12SEP16

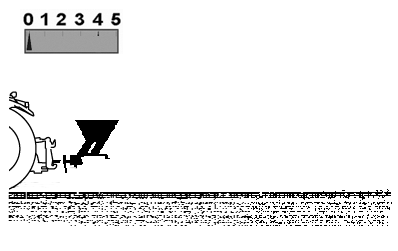

Hitch Held at Selected Position

Use draft control to maintain operating depth of tillage equipment in rolling terrain. If soil density/resistance varies, higher response setting causes more depth variation. The best setting depends on the implement type and field conditions.

Higher values provide more/faster draft response. Lower values provide less/slower draft response. Setting value to “0” is position control, which means the hitch maintains the height set by the operator.

Adjusting load/depth only changes draft responsiveness. Use hitch lever to control/change operating depth.

NOTE: Low draft response settings slow the drop rate of lighter implements. To increase the speed at which implement enters the ground, hold lever in forward detent. Hitch lowers at the drop rate selected.

Typical load/depth settings:

Integral Field Cultivator or Box Blade Scraper	4—5
Integral Moldboard Plow	3—5
Semi-Integral Moldboard Plow	2—4
Integral Chisel Plow	2—4
Integral Ripper/Subsoiler	1—3
Implements with Gauge Wheels or Non-Ground Engaging Implements	0
