Position Center Link

RXA0153878
RXA0153878-UN-05DEC16

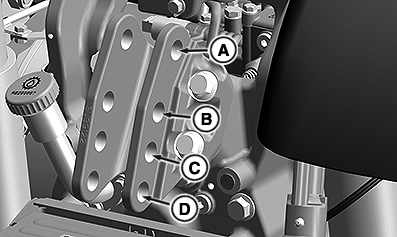

A - Highest Position (0 degrees of tilt for category 2)

B - Second Position (10 degrees of tilt for category 2)

C - Third Position (15 degrees of tilt for category 2)

D - Lowest Position (10 degrees of tilt for category 1)

The center link attaching bracket has holes which allow up to four different positions for attaching the center link.

If the following conditions occur, move the center link to indicated holes to correct.

Condition

Use Hole

Rear of implement rises too much when lifted.

A

Rear of implement drags the ground.1

B or C

Category I mast height 457 mm (18 in) implement being used.2

C or D

Category II mast height 483 mm (19 in) implement being used.

A, B or C

1 The implement weight which can be lifted is reduced slightly with center link attachment in lower holes C and D.
2 The implement weight which can be lifted is reduced slightly with center link attachment in lower holes.

DP51502,00026D9-19-20161207
