Prepare Implement

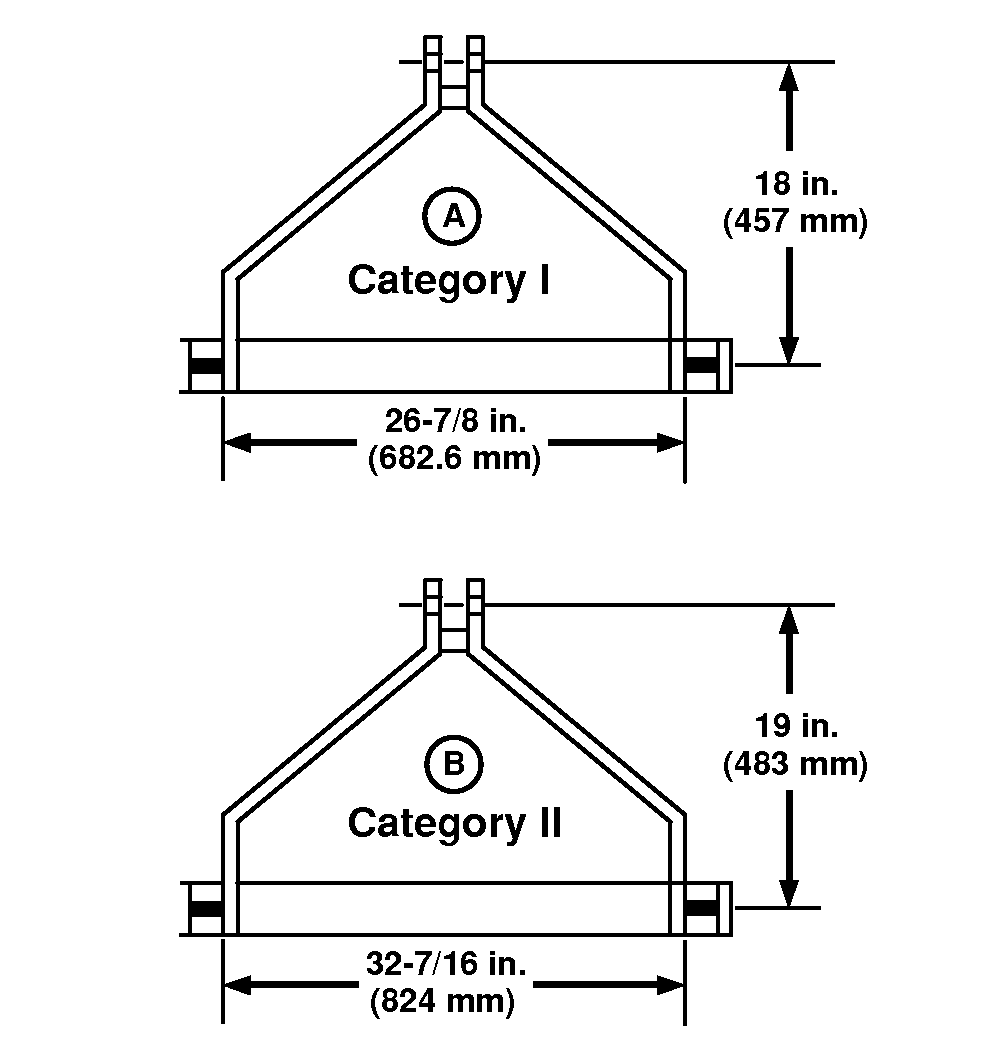

LV9639-UN-11AUG04
A - Category I
B - Category II
When attaching Category I implements to the machine, sway bars need adjustment to prevent binding and limiting full raise of the hitch. See “Adjust Hitch Side Sway” in this section.
Category I (A), hitch is narrower and is used for smaller implements than Category II (B) implements. (See chart to identify implement category.)
Category II implements have the top hole of the implement mast located 483 mm (19 in) above the lower pins.
|
Category |
Mast Height |
Width Between Lower Pins |
Pin Size |
|
|---|---|---|---|---|
|
Lower |
Upper |
|||
|
I (A) |
457 mm (18 in) |
682.6 mm (26-7/8 in.) |
22 mm (7/8 in) |
19 mm (3/4 in) |
|
II (B) |
483 mm (19 in) |
824 mm (32-7/16 in.) |
28 mm (1-1/8 in.) |
25.4 mm (1 in) |
|
