Hitch Conversion - Category II to I

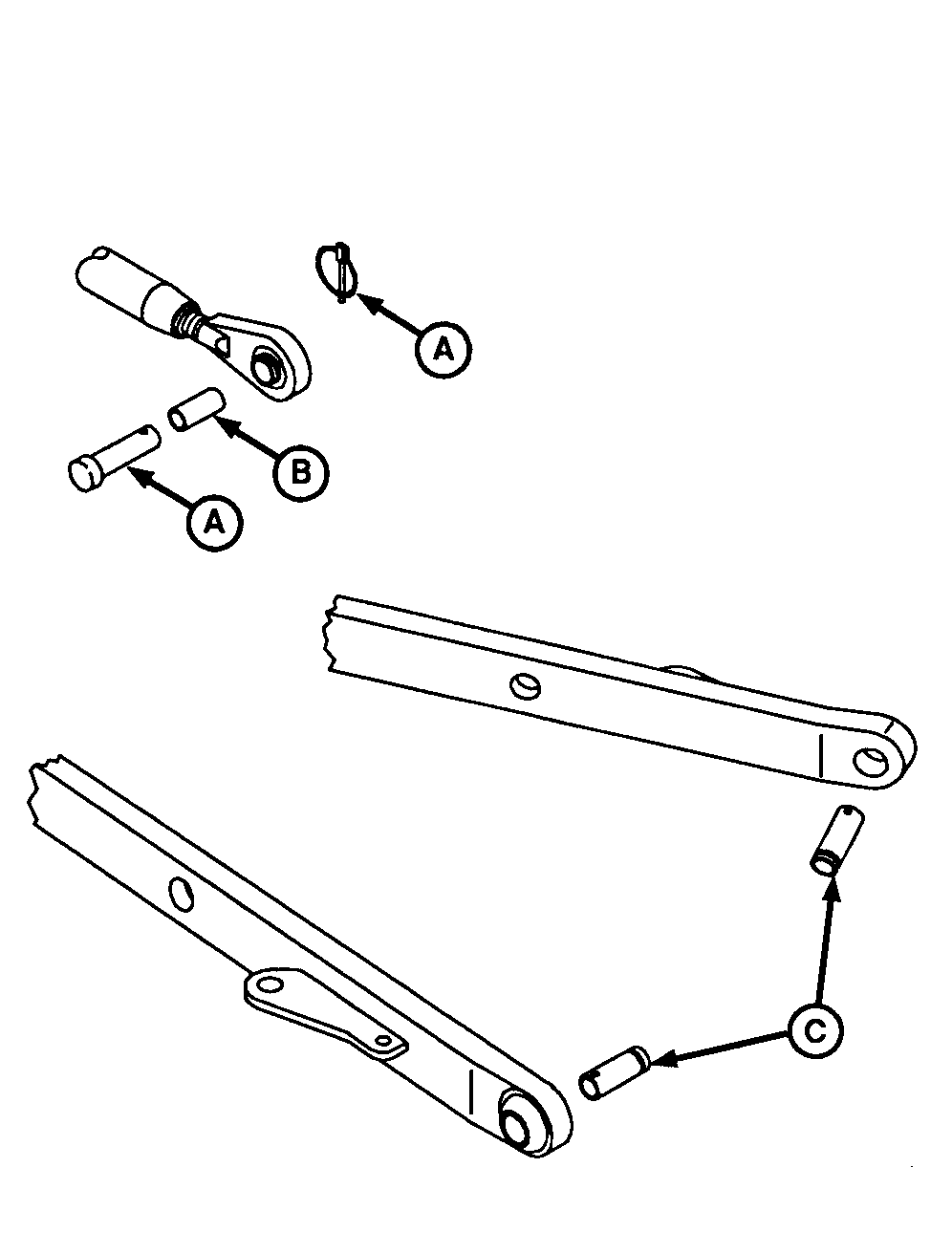

M47171A-UN-22APR94

A - Implement Pin

B - Center Link Reducing Bushing

C - Draft Link Reducing Bushing

NOTE: There is a hook end option for the center link and draft link ends, the adjustments are all made on the implement side for these ends.

Center link end and draft link ends are sized for Category II implement attaching pins.

To use Category I implements, convert the Category II hitch:

• Insert reducer bushing (B) in the center link end.
• Use smaller implement pin (A) through the implement mast.
• Add draft link reducers (C) to end of draft links.

See your John Deere dealer for parts.
