Manually Raise/Lower Hitch

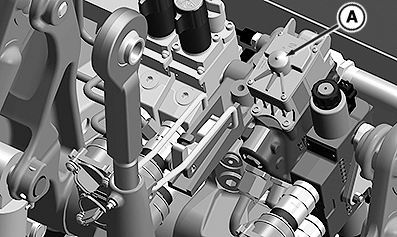

RXA0153881-UN-13SEP16

A - Protective Cap

CAUTION: Perform procedure from operator's station to avoid possible injury from rear hitch-mounted implements.

IMPORTANT: Hitch will manually lower without engine or electrical power. Hitch raises manually with engine running.

1. From the operator’s seat, remove protective cap (A) to access manual raise/lower screw.

2. Rotate the screw accordingly to raise or lower the hitch.

   1. Clockwise to lower hitch.

   2. Counterclockwise to raise the hitch.
