Quick Coupler

RXA0129477-UN-20NOV12

RXA0153880-UN-12SEP16

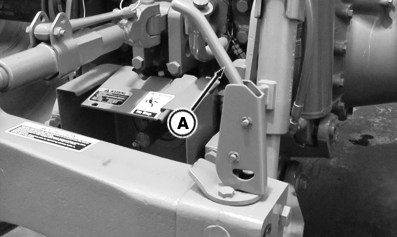

A - Coupler Latch Handle

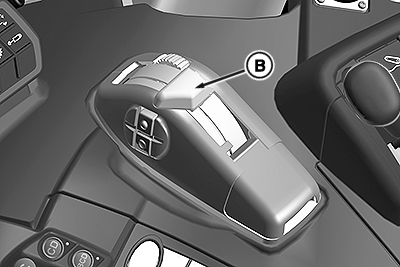

B - Rear Hitch Position Control Lever

CAUTION: Avoid bodily injury or machine damage:

• Put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation whenever an implement is attached.
• Make sure that implement is correctly attached. Incorrect attachment can allow implement to be pulled over the machine wheel and onto the operator station.
• Do not stand between machine and implement.

Connect Implement:

1. Pull coupler latch handles (A) up.

2. Lower hitch until quick coupler hooks are lower than implement hitch pins.

3. Back up the machine to implement.

4. Raise hitch enough to engage implement pins in hooks.

5. Push coupler latch handles down to lock implement to quick coupler.

6. Connect hydraulic hoses and electrical connections.

7. IMPORTANT: Check for implement interference. Drawbar removal may be necessary.

   Slowly pull position control lever (B) to raise implement. Lower implement to ground and adjust upper height limit control if necessary.

Disconnect Implement:

1. Pull coupler latch handles (A) up with implement raised.

2. Disconnect hydraulic hoses and electrical connections.

3. Lower implement to ground and continue lowering quick coupler until hooks clear implement hitch pins.

4. Carefully drive the machine away from implement.
