Implement Float

LX1049979-UN-18MAY11

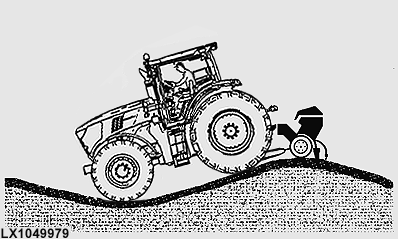

Implement Follows Ground Contour

Implements that fully rest on gauge wheels for depth control require hitch to float and follow the ground contour.

Put hitch command lever in float position (fully forward) and set load depth control to “0”.

If necessary, adjust lift links to allow lateral float. See “Adjust Lateral Float” in this section.
