Drawbar Settings

Adjust Drawbar Length

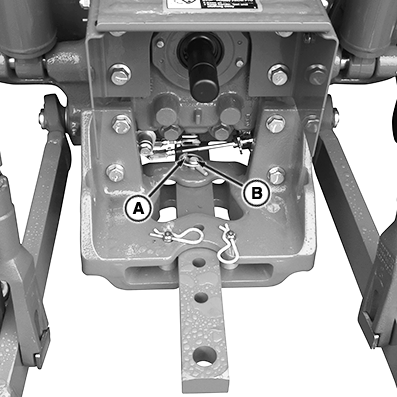

RXA0155957-UN-05DEC16

A - Retaining Pin

B - Drawbar Pin

1. Remove retaining pin (A).

2. Remove drawbar pin (B).

3. Slide drawbar to desired position.

4. Install pin (B) and insert a retaining pin (A) to lock drawbar in place.

Adjust Drawbar Offset

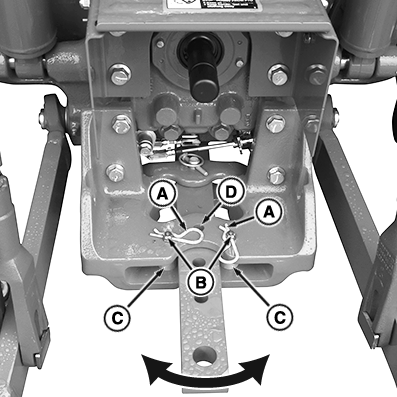

RXA0155958-UN-05DEC16

A - Retaining Pin

B - Drawbar Pin

C - Spacers (2 Used)

D - Offset Mounting Hole

1. Remove retaining pin (A).

2. Remove pin (B) and spacers (C).

3. Offset drawbar toward left or right.

4. Install pin (B) and insert a retaining pin (A) and spacers (C) into hole (D) to hold drawbar in place.
