Windows

CAUTION: In an emergency situation, rear window provides an exit path if cab doors are blocked. The panoramic sunroof does not open under any circumstance.


Rear Window

RXA0153908
RXA0153908-UN-22SEP16

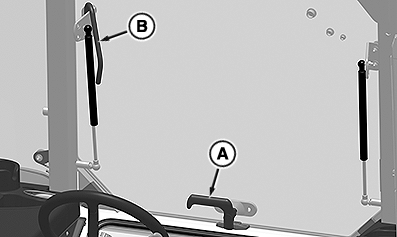

A - Rear Window Latch

B - Window Handle

Rotate rear window latch (A) clockwise and push window open.

Pull on window handle (B) to close window and rotate window latch counterclockwise to secure.


Side Window

RXA0153909
RXA0153909-UN-22SEP16

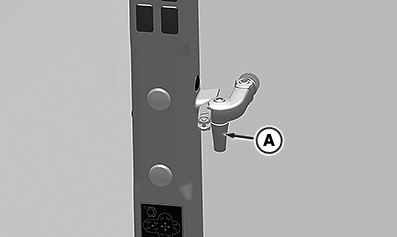

A - Side Window Latch

Pull side window latch (A) rearward and push side window outward to open.

DP51502,000273E-19-20160923
