Steering Wheel and Column

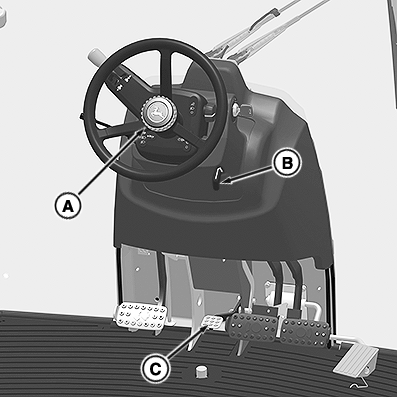

RXA0153907-UN-18OCT16

A - Steering Wheel Telescope Release Knob

B - Steering Wheel Tilt Release Lever

C - Steering Column Tilt Release Lever

Telescope: Rotate steering wheel telescope release knob (A) counterclockwise. Extend or retract the steering wheel to desired position. Rotate knob clockwise to lock.

Wheel Tilt: Pull up on steering wheel tilt release lever (B) and move steering wheel to desired position. Release lever to lock.

Column Tilt: Push down on the steering column tilt release lever (C). Fully raise steering column. Release lever to latch column at top of travel.

Push down on the steering column tilt release lever. Lower steering column to previous tilt setting.
