Tool Box

RXA0153913
RXA0153913-UN-23SEP16

RXA0154070
RXA0154070-UN-23SEP16

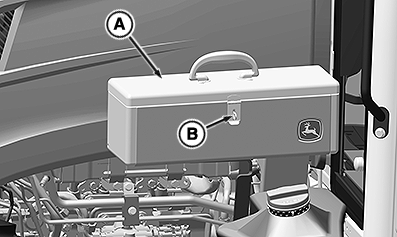

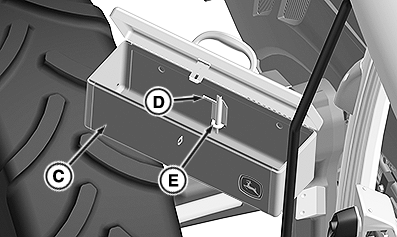

A - Lid

B - Latch

C - Tool Box

D - Removal Pin

E - Retaining Tab

The tool box (C) is lockable and removable. To lock, close latch (B) and place a padlock through eye.

To remove tool box:

  1. Lift latch (B).

  2. Open lid (A).

  3. Support bottom of the tool box (C).

  4. Pull removal pin (D) upward to release.

  5. Slide toolbox away from retaining tab (E) to release tool box.

  6. Reverse process to reinstall.

DP51502,0002759-19-20160923
