Front Loader

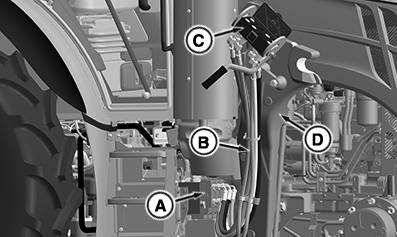

RXA0154091-UN-14OCT16

A - Mid SCV Stack

B - Loader Extension Hoses

C - Loader Multicoupler

D - Loader Mounting Frame

• For information on installing the loader brackets, see “Additional Equipment Maintenance” section of this manual.
• For information on how to attach the loader to the machine and basic functionality, refer to the specific Loader Operator Manual.
• For information on how to use the controls to operate the loader, refer to the “Selective Control Valve Operation” section of this manual.
• For information on how to use loader lighting, refer to the “Electrical and Lighting Operation” section of this manual.
