Warm Transmission-Hydraulic Oil

Steering, transmission, and hydraulic systems are slow to function when machine is started in cold weather. To warm oil up quicker for improved cold weather operation follow procedure as required.


Open Center Hydraulic Systems:

RXA0154354
RXA0154354-UN-19OCT16

RXA0154355
RXA0154355-UN-19OCT16

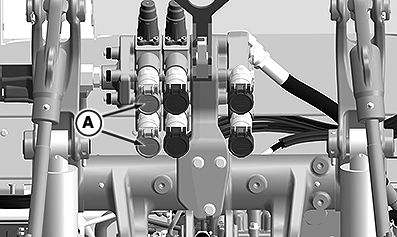

A - SCV I Couplers

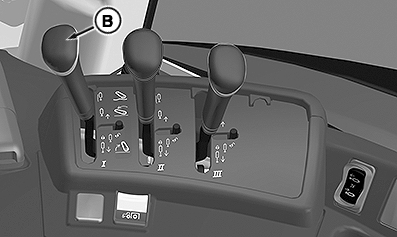

B - SCV I Lever

  1. Connect jumper hose to SCV I couplers (A).

  2. If SCV is equipped with flow control, open flow control knob fully to allow maximum flow.

  3. Start engine and set idle to 1200 rpm.

  4. Hold SCV I lever (B) forward or rearward until hydraulic oil warms to operating temperature.

  5. To check warm-up progress, turn steering wheel side-to-side. When wheel turns smoothly without hesitation, oil has warmed to operating temperature.

  6. Return SCV levers to neutral.

  7. Return flow control knobs to original setting.

  8. Remove jumper hose.


Closed Center Hydraulic Systems:

RXA0154356
RXA0154356-UN-19OCT16

RXA0154355
RXA0154355-UN-19OCT16

RXA0154357
RXA0154357-UN-19OCT16

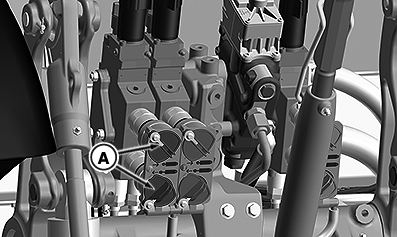

A - SCV I Couplers

B - SCV I Lever

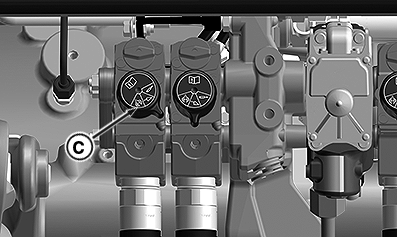

C - Continuous Flow Detent

  1. Connect jumper hose to SCV I couplers (A).

  2. Select SCV I detent to continuous flow detent (C) (no kick-out).

  3. Adjust to approximately medium oil flow.

  4. Set engine at 1200 rpm. Move SCV I lever (B) rearward to detent position until hydraulic oil warms to operating temperature.

  5. To check warm-up progress, turn steering wheel side-to-side. When wheel turns smoothly without hesitation, oil has warmed to operating temperature.

  6. Return SCV levers to neutral.

  7. Return detent selector and flow control knobs to original positions and setting.

  8. Remove jumper hose.

DP51502,000276A-19-20161006
