Mid SCV Controls and Components

Mid SCV Controls

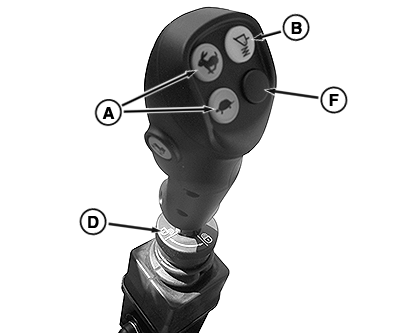

RXA0155230-UN-08NOV16

Mechanical Mid-SCV Control

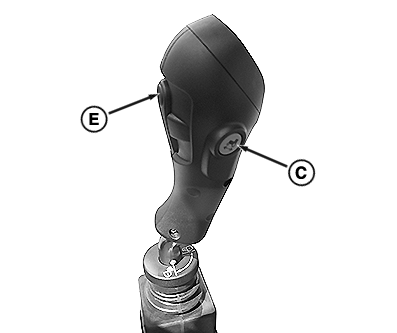

RXA0155231-UN-08NOV16

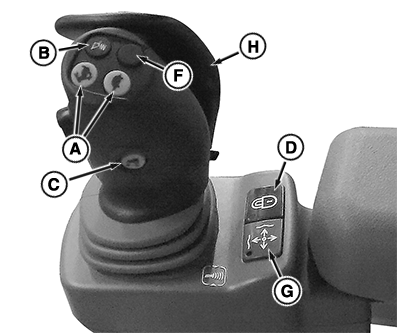

RXA0155233-UN-08NOV16

Electro-Hydraulic Mid-SCV Control

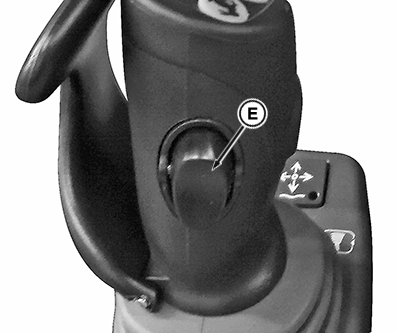

RXA0155232-UN-08NOV16

A - Gear Shift Buttons

B - Loader Suspension Button

C - Reverser

D - Loader Lock

E - Third Function Button

F - Diverter Buttons

G - Activation Indicator Light

H - Operator Hand Presence Lever

Mid SCV Components

NOTE: Valve layout varies between Open Center and Closed Center Hydraulic systems.

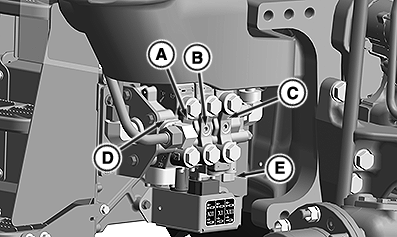

RXA0154096-UN-14OCT16

Open Center Mid SCV Stack

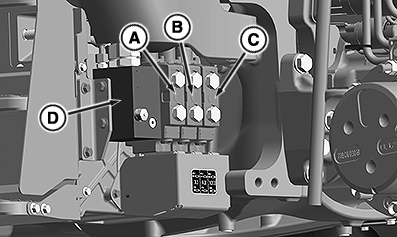

RXA0154092-UN-13OCT16

Closed Center Mid SCV Stack

A - SCV XI

B - SCV XII

C - SCV XIII

D - Mid SCV Manifold

E - Flow Control

F - SCV XIII

G - SCV XI

H - SCV XII

Mid SCV Operation

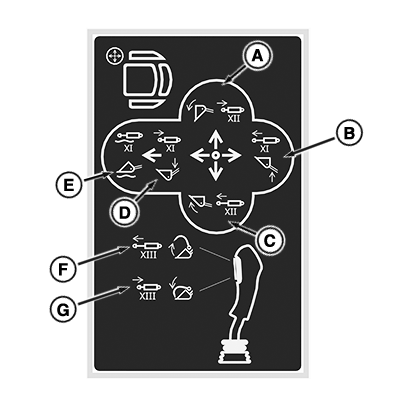

RXA0154082-UN-13OCT16

Mechanical Mid SCV Functions

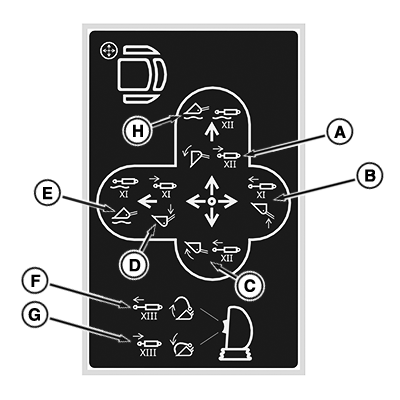

RXA0154083-UN-13OCT16

EH Mid SCV Functions

CAUTION: The multi-function lever must be locked when the loader is not in use, transporting, or when operator dismounts the machine. For mechanical mid SCV control, turn locking ring. For EH mid SCV control, depress the lock button and indicator light illuminates. Check that the loader does not respond after locking. If not done, the front loader may be actuated unintentionally, which could lead to serious accidents.

Position	Direction	Loader Function	SCV Function
A	Right	Bucket Tilt (Dump)	SCV XII Retract
B	Rearward	Boom Raise	SCV XI Extend
C	Left	Bucket Rollback (Curl)	SCV XII Extend
D	Forward	Boom Lower	SCV XI Retract
E	Forward Detent	Boom Float	SCV XI Float
F	Top Button	Grapple Open	SCV XIII Extend
G	Bottom Button	Grapple Close	SCV XIII Retract
H	Right Detent	Bucket Float	SCV XII Float

NOTE: Move the EH multi-function lever to the right (A) twice in brief succession beyond the point of resistance and hold it to activate the bucket shake function.

Mid SCV Identification

SCV Color Codes
