Front Hitch and SCV

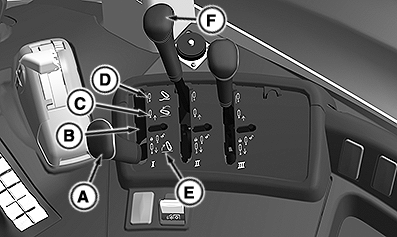

RXA0154099-UN-20OCT16

A - SCV I Lever

B - Front Hitch Neutral Position

C - Front Hitch Lower Position

D - Front Hitch Float Position

E - Front Hitch Raise Position

F - SCV II Lever

TO use the front hitch or the front SCV couplers, the operator must shift the diverter valve. See the “Hitch and Drawbar Operation” section in this manual.

SCV I lever (A) controls the front hitch functions.

• Neutral - front hitch does not move.
• Lower - front hitch is powered down and has down pressure.
• Float - front hitch lowers and follows the ground contour.
• Raise - front hitch lifts

SCV II lever (F) controls the couplers on the front hitch. The function of the front couplers are the same as rear SCV II.
