Connect to Rear SCVs

RXA0154348
RXA0154348-UN-14OCT16

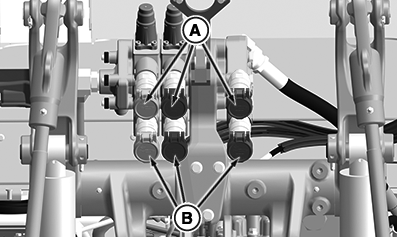

A - Retract Couplers

B - Extend Couplers

  1. Identify extend and retract hoses.

  2. Remove dust caps from hose end.

  3. Open coupler covers.

  4. Making sure that hose end and coupler are clean, push hose tip firmly into SCV coupler. Pull on hose making sure that positive connection is made.

  5. Connect retract hoses to top couplers (A) and extend hoses to bottom couplers (B).

DP51502,0002773-19-20161011
