Connect to Mid SCVs

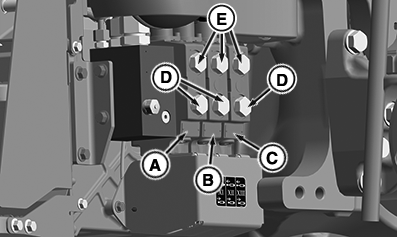

RXA0154349-UN-14OCT16

Closed Center

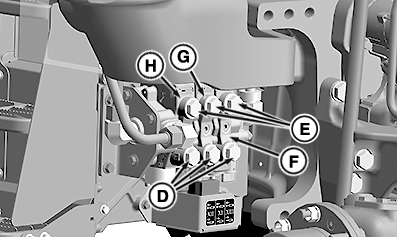

RXA0156147-UN-12DEC16

Open Center

A - Boom Valve—SCV XI

B - Bucket Valve—-SCV XII

C - Auxiliary Function—SCV XIII

D - Retract Ports

E - Extend Ports

F - Auxiliary Function—SCV XIII

G - Boom Valve—SCV XI

H - Bucket Valve—-SCV XII

NOTE: Mid SCVs have plugs, couplers, or are directly plumbed to a loader or other attachment.

Depending on how the mid SCVs are configured, connections are specific to the application. Attach to extend (E) and retract ports (D) accordingly to get correct response when commanded.
