Single-Acting Cylinders

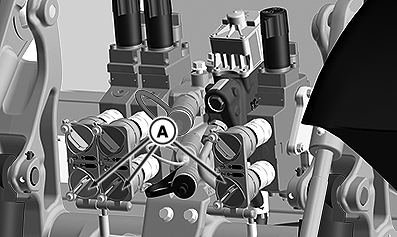

RXA0154350-UN-14OCT16

A - Extend Couplers

IMPORTANT: Volume of oil required to extend cylinder lowers transmission-hydraulic oil level. With cylinder fully extended, check oil level and fill to the proper level. See “Check Transmission-Hydraulic System Oil Level” in the Hydraulics Maintenance section.

Pull SCV lever back to pressurize and extend single-acting cylinder.

Push SCV lever fully forward to “float” position and retract cylinder.
